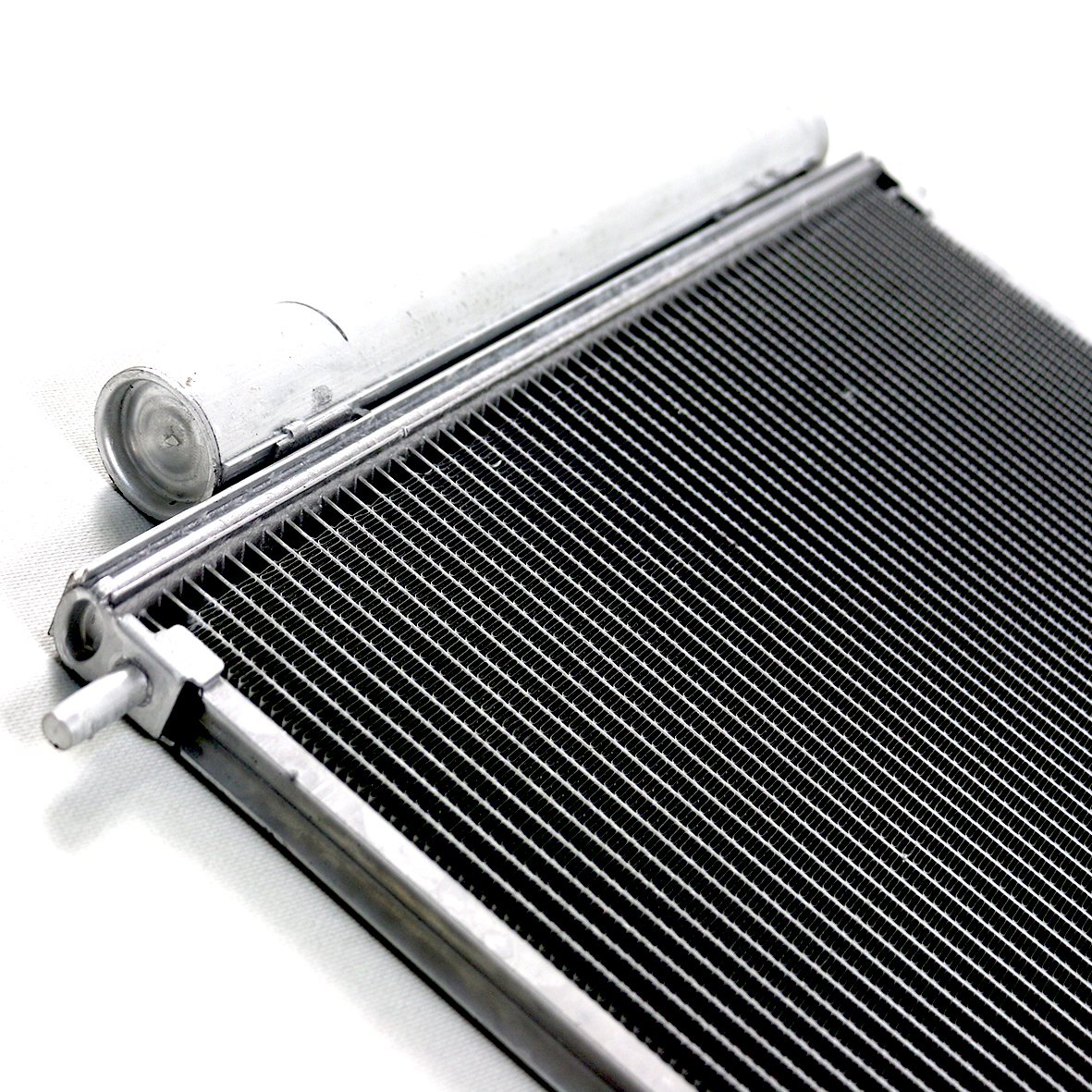

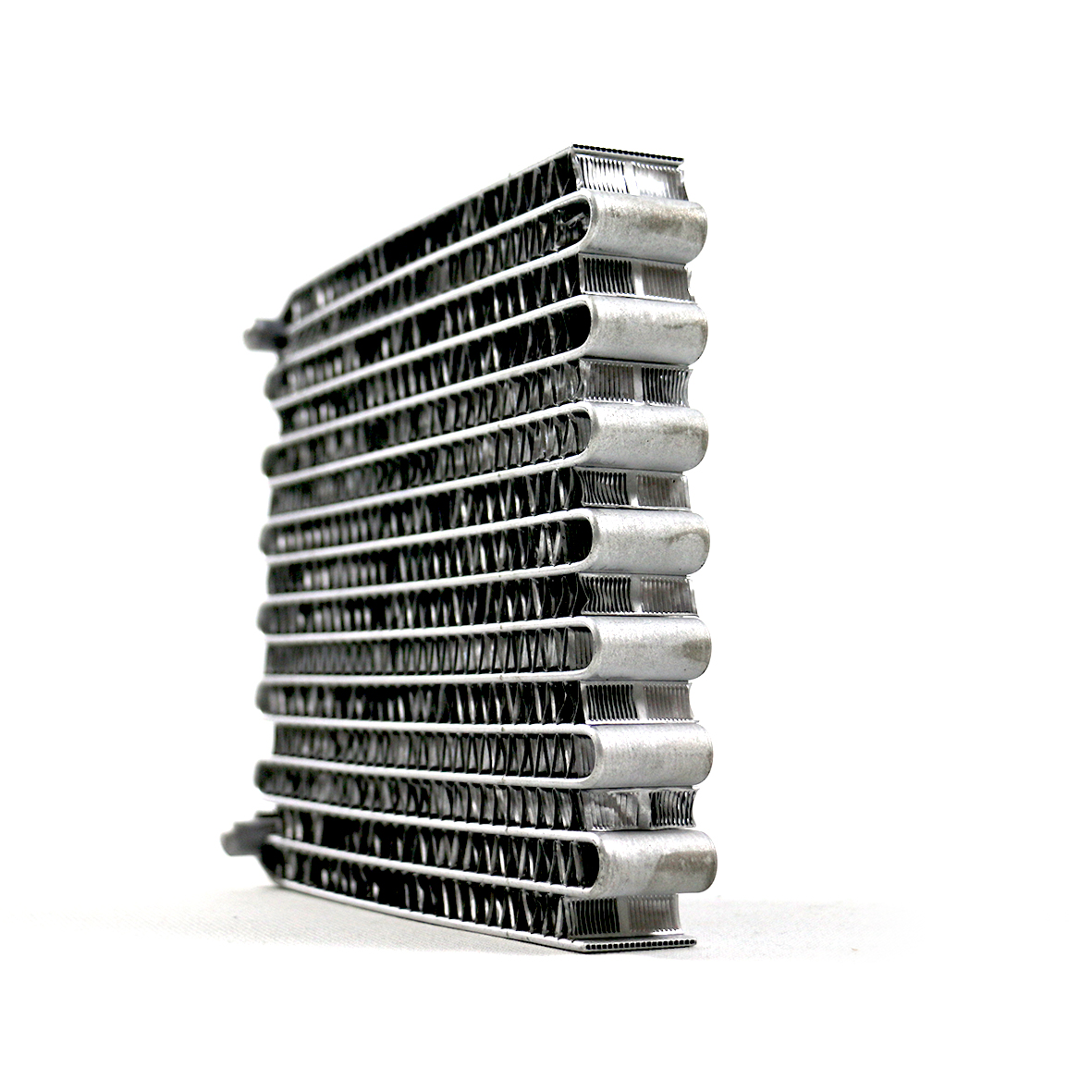

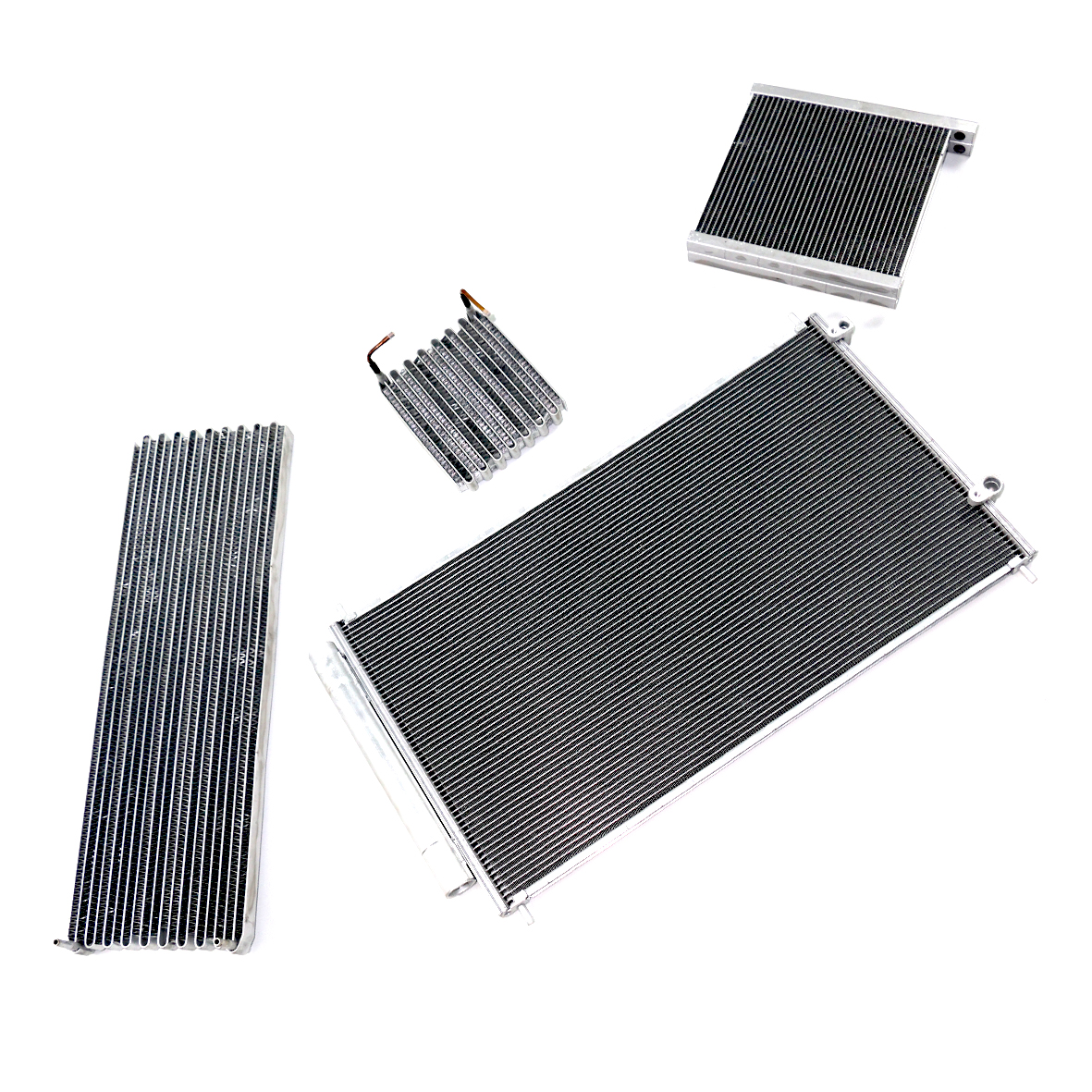

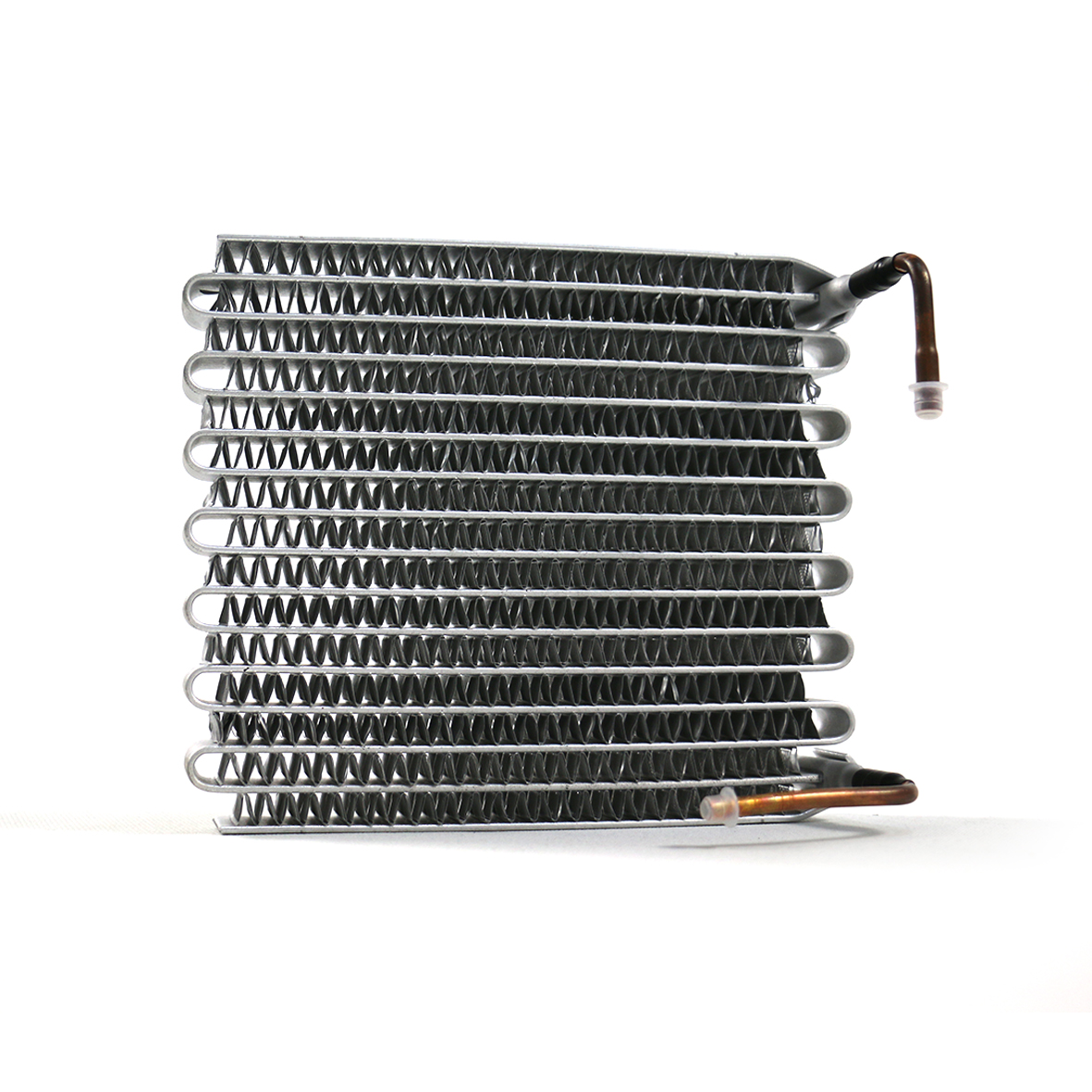

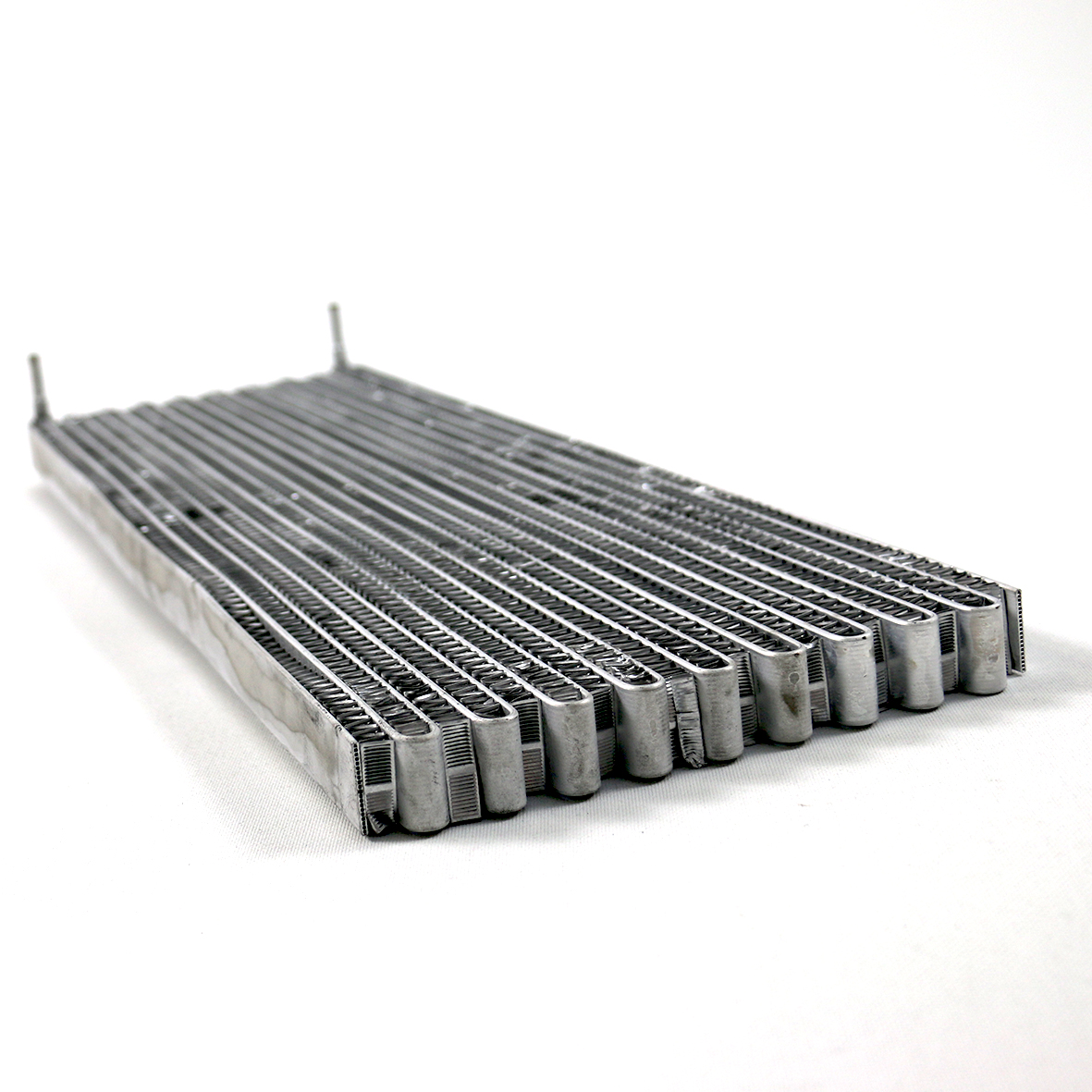

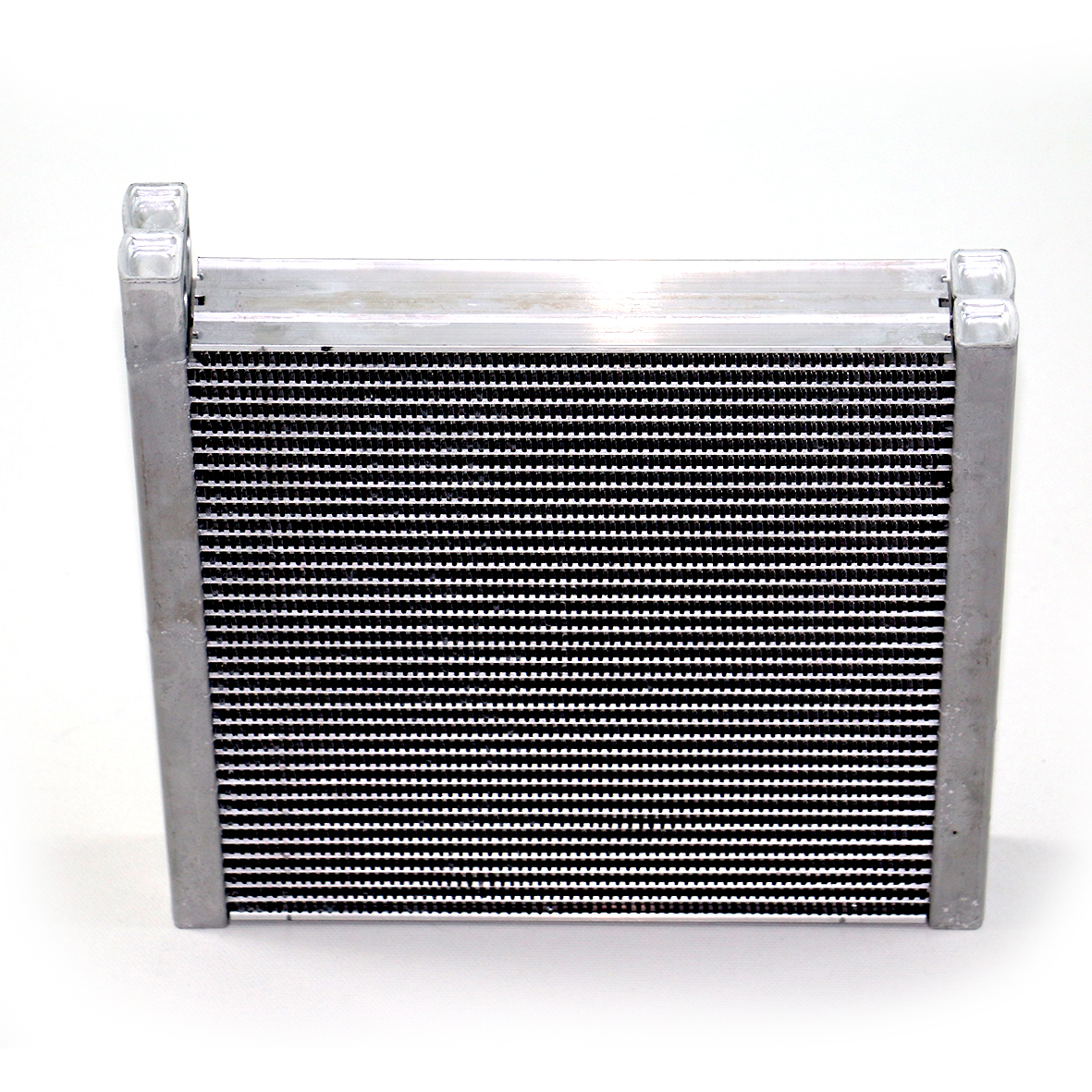

MICRO CHANNEL HEAT EXCHANGER (MCHE)

Microchannel Heat Exchangers (MCHE), which have been used reliably in the automotive industry for years, are now gaining significant importance in the domestic appliances (white goods) and HVAC sectors. Tightening energy regulations and increasing environmental awareness have transformed this compact, high-efficiency technology from an alternative into an industry standard.

Primary Applications

  • Refrigerators: High-performance condensers.
  • Tumble Dryers: Energy-efficient condensers.
  • Heat Pump Boilers: Optimized condenser units.
  • Industrial Cooling: Specialized condensers for heavy-duty systems.
  • HVAC Systems: Advanced heat exchangers for climate control.

Technical Specifications

To meet various industrial requirements, we offer precise engineering across the following parameters:

Component Specification Details
Microchannel Tube Width Range 10 – 40 mm
Height Range 1 – 2 mm
Alloy Aluminum 3102 F / 3003 F
Coating Cladded 4343 or Clad-free
Fin Alloy Aluminum 3003 H14
Coating Cladded 4343 or Clad-free
Height 8.1 mm
Thickness 0.08 mm
Width Range 10 – 60 mm
  Type Louver
Design Types Serpentine and Collector (Header)
