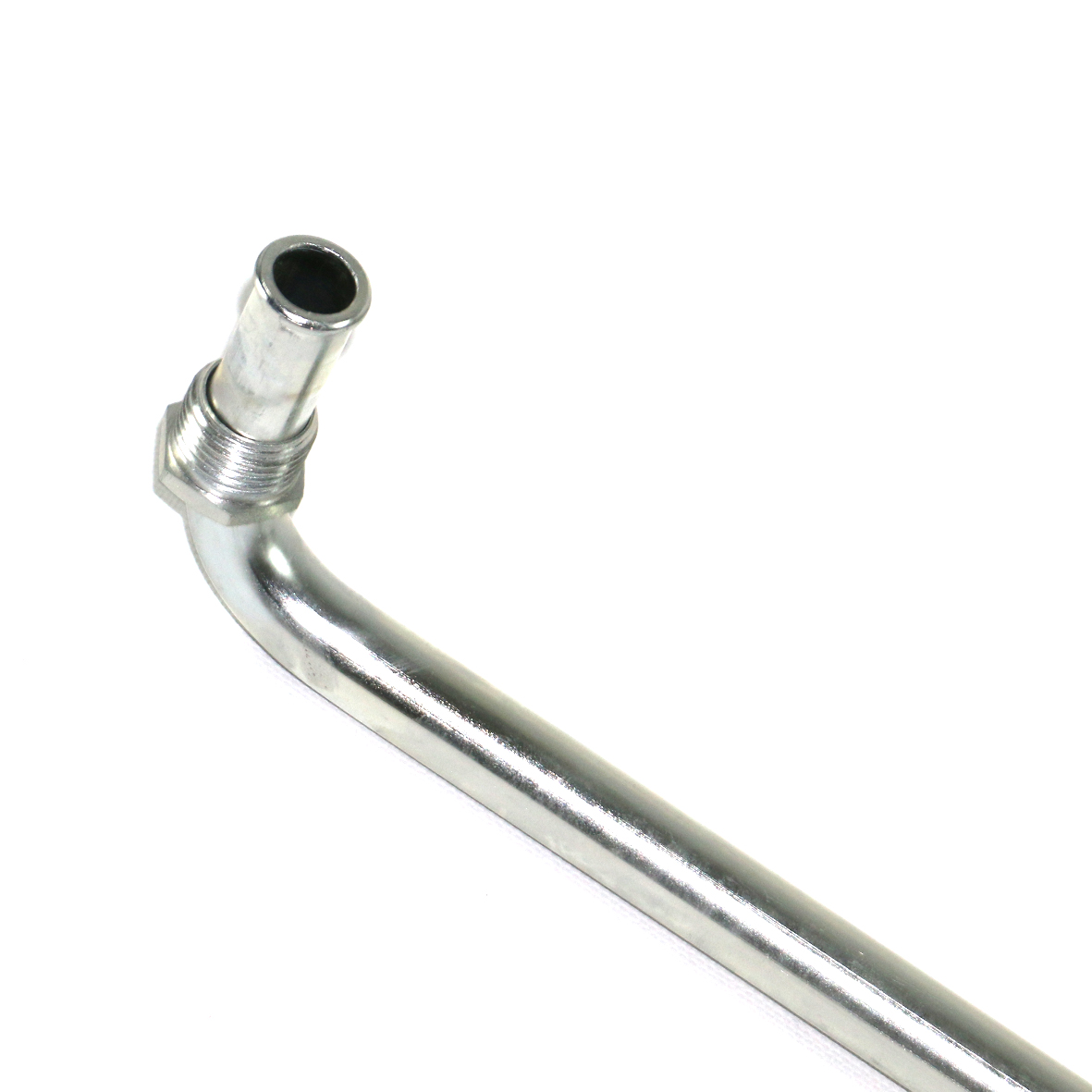

Gas Tubes

KONVEYOR manufactures several millions of aluminium gas tubes for gas cookers, ranges, and stoves per year. The standard tube diameters may range from 5mm to 10 mm depending on the application and customers’ requirements.
In the production:

• The Aluminium tubes are produced at KONVEYOR internally,
• The tubes are cut to lengths in fully automatic machines,
• The tube ends are formed as per customers’ requirements in semi-automatic end-forming machines.
• The fittings, in the customer’s choice of either in brass or steel, could be inserted automatic or manual depending on the shape.
• Manual forming on proper jigs are configured to final shape of the tubes.
• The tubes are bundled in tens or dozens and placed in carton boxes.
• Export deliveries are on Euro-pallets.

The COLD-BEADED (forged) STEEL NUTS production developed
in KONVEYOR is a less expensive option for customers as
compared to the nuts made by machining from wrought rods.

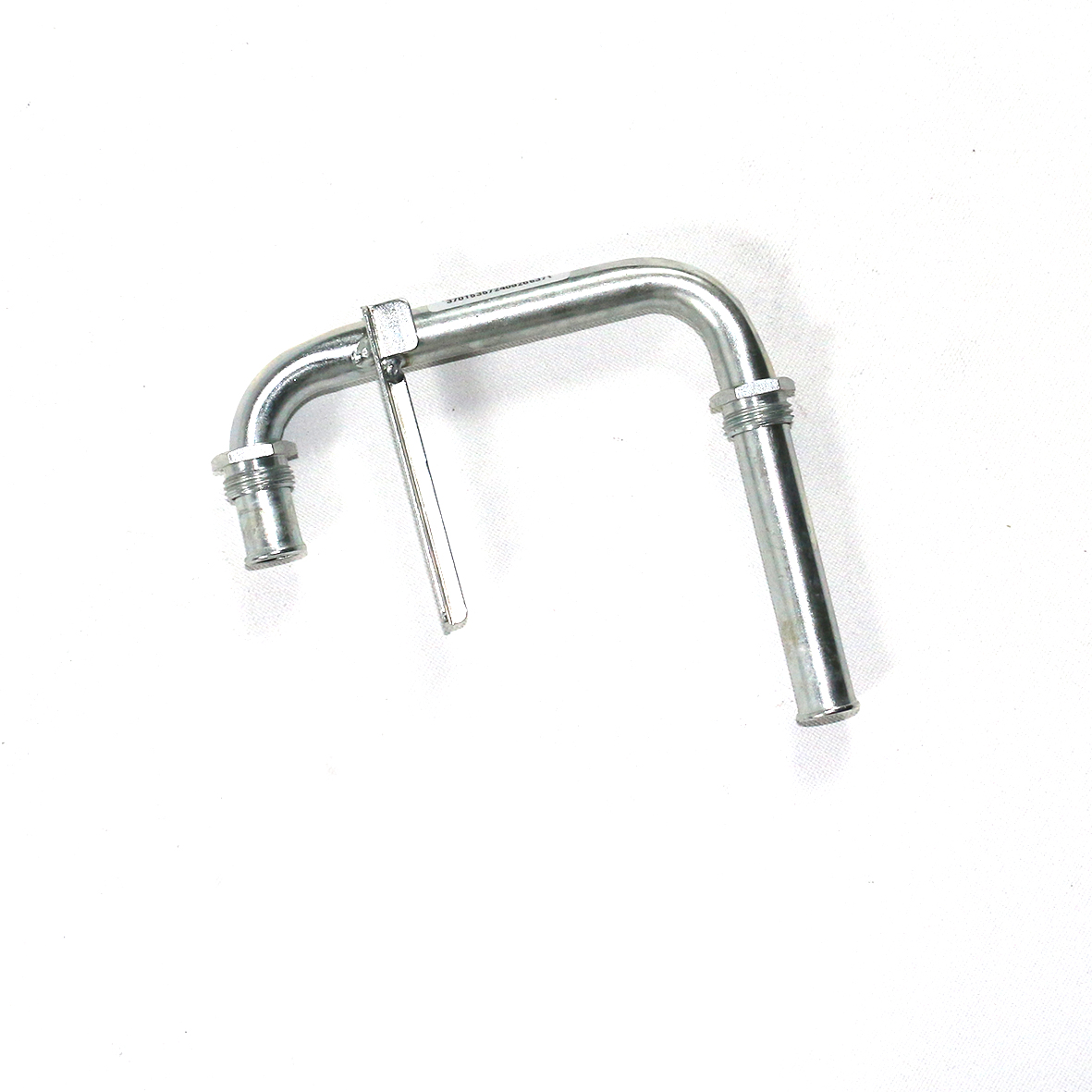

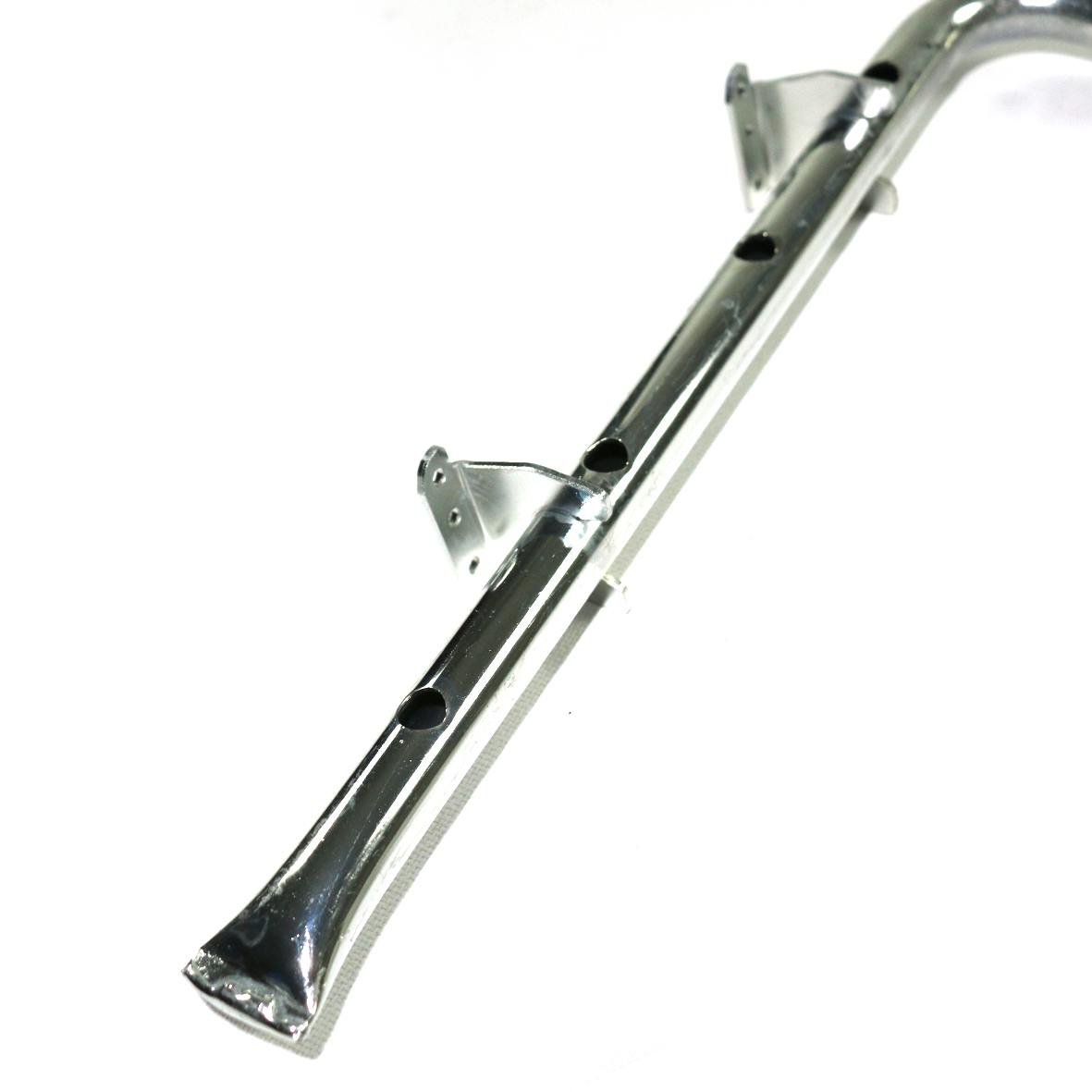

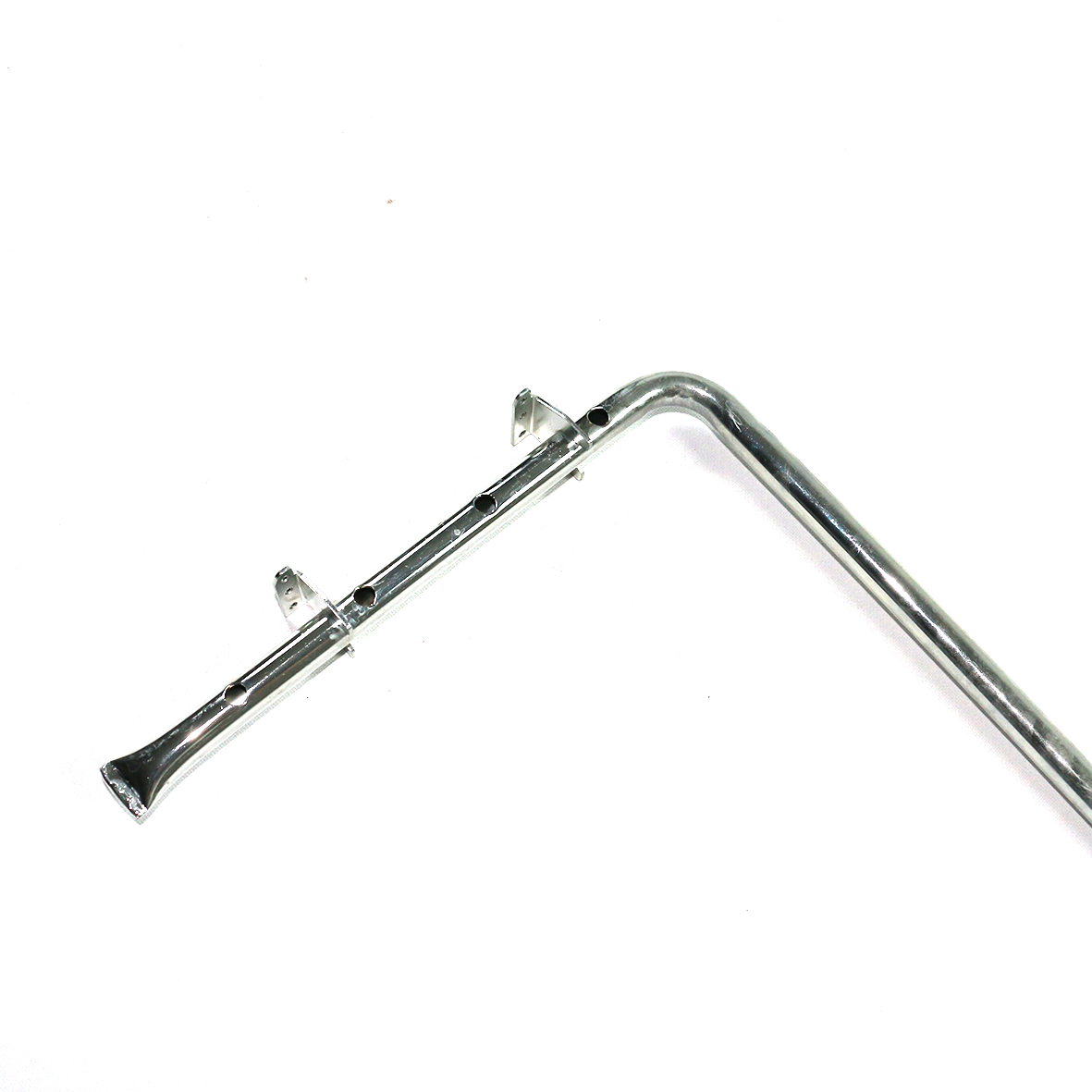

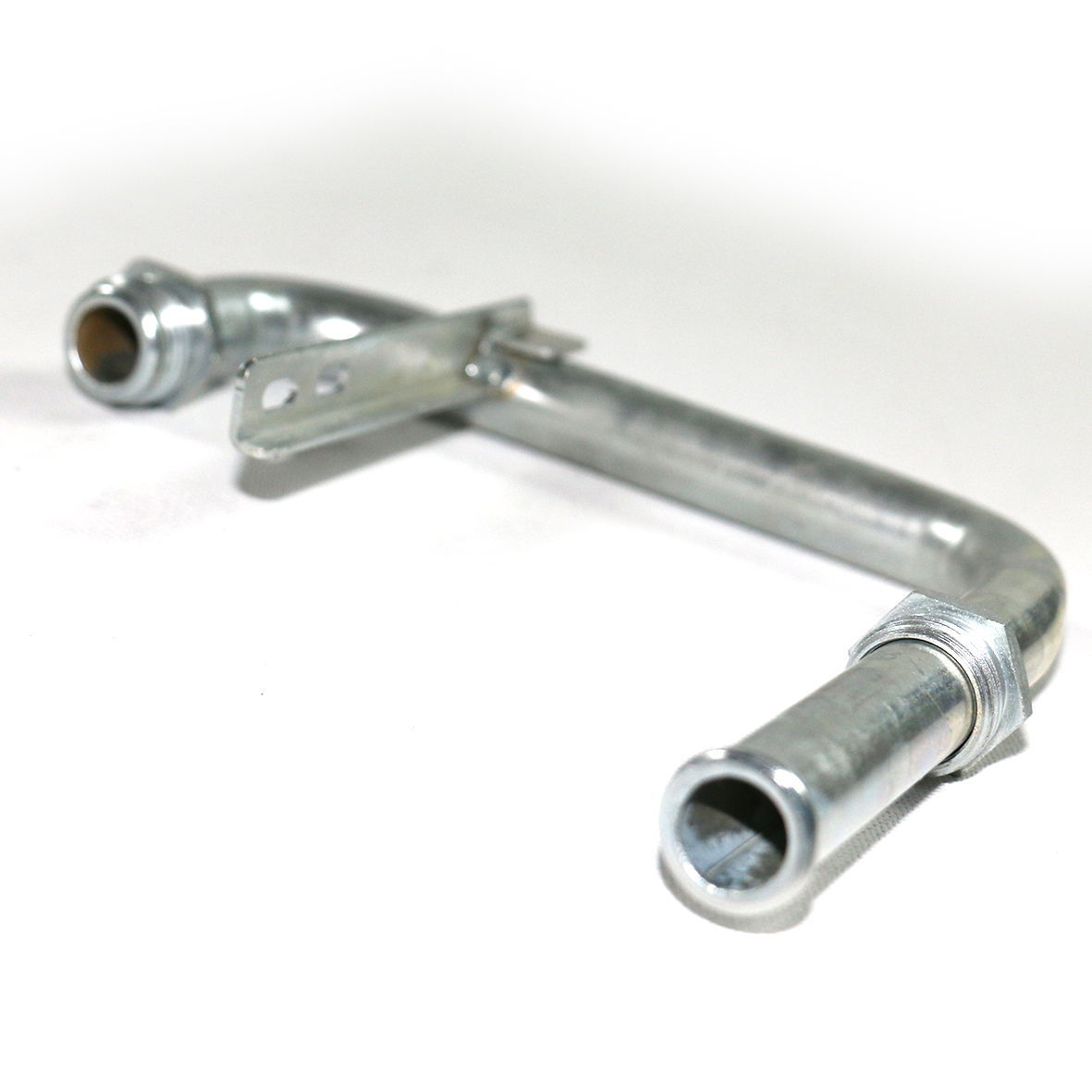

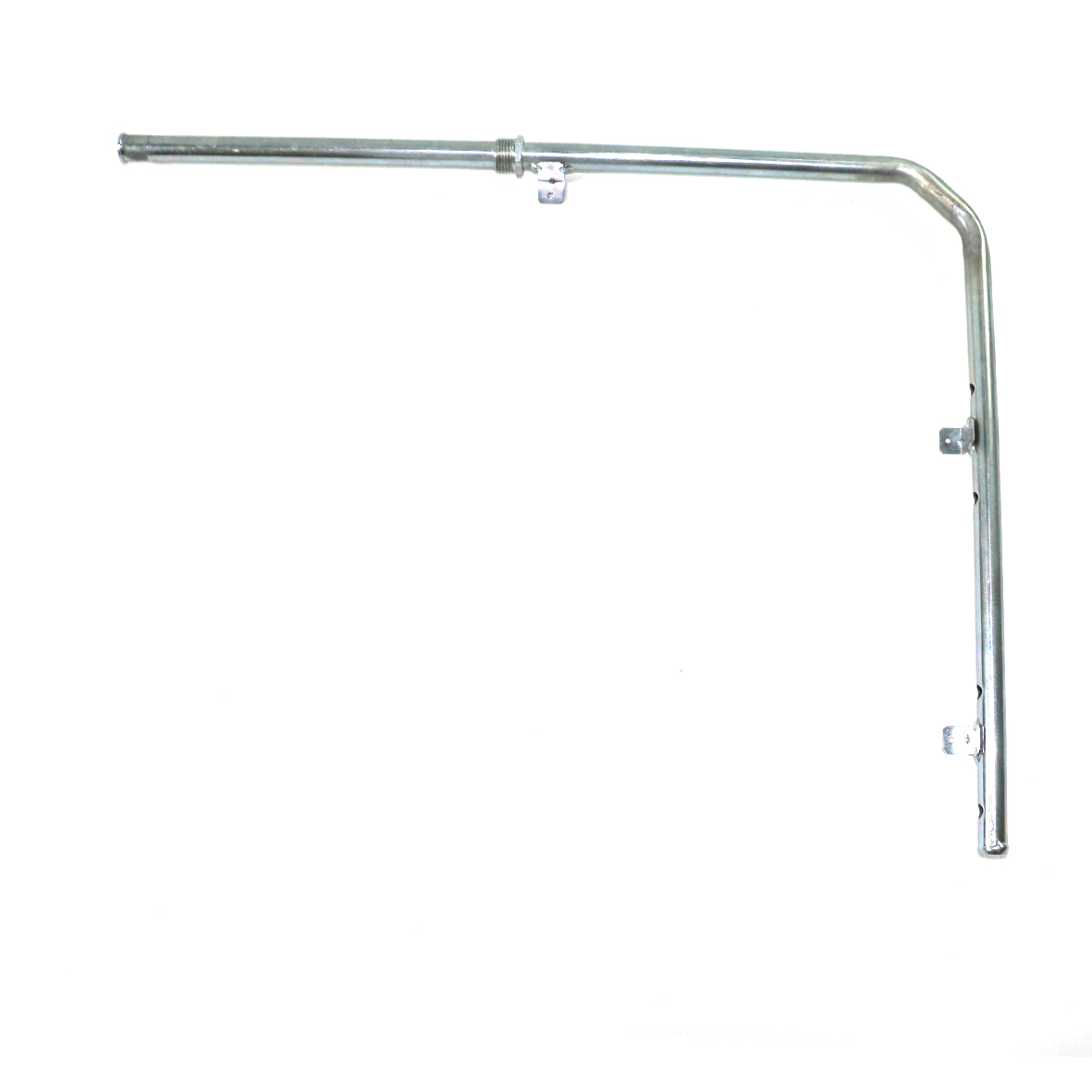

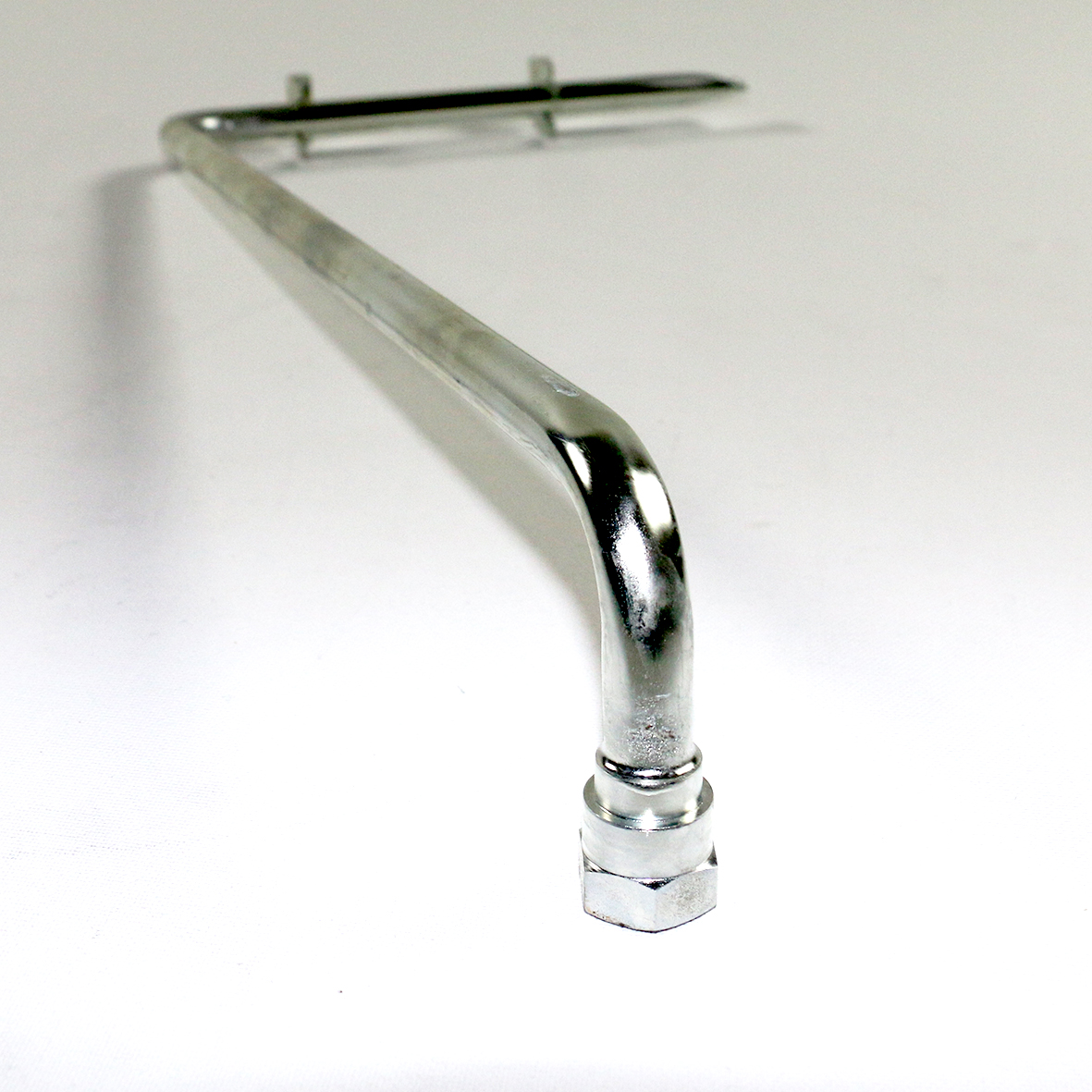

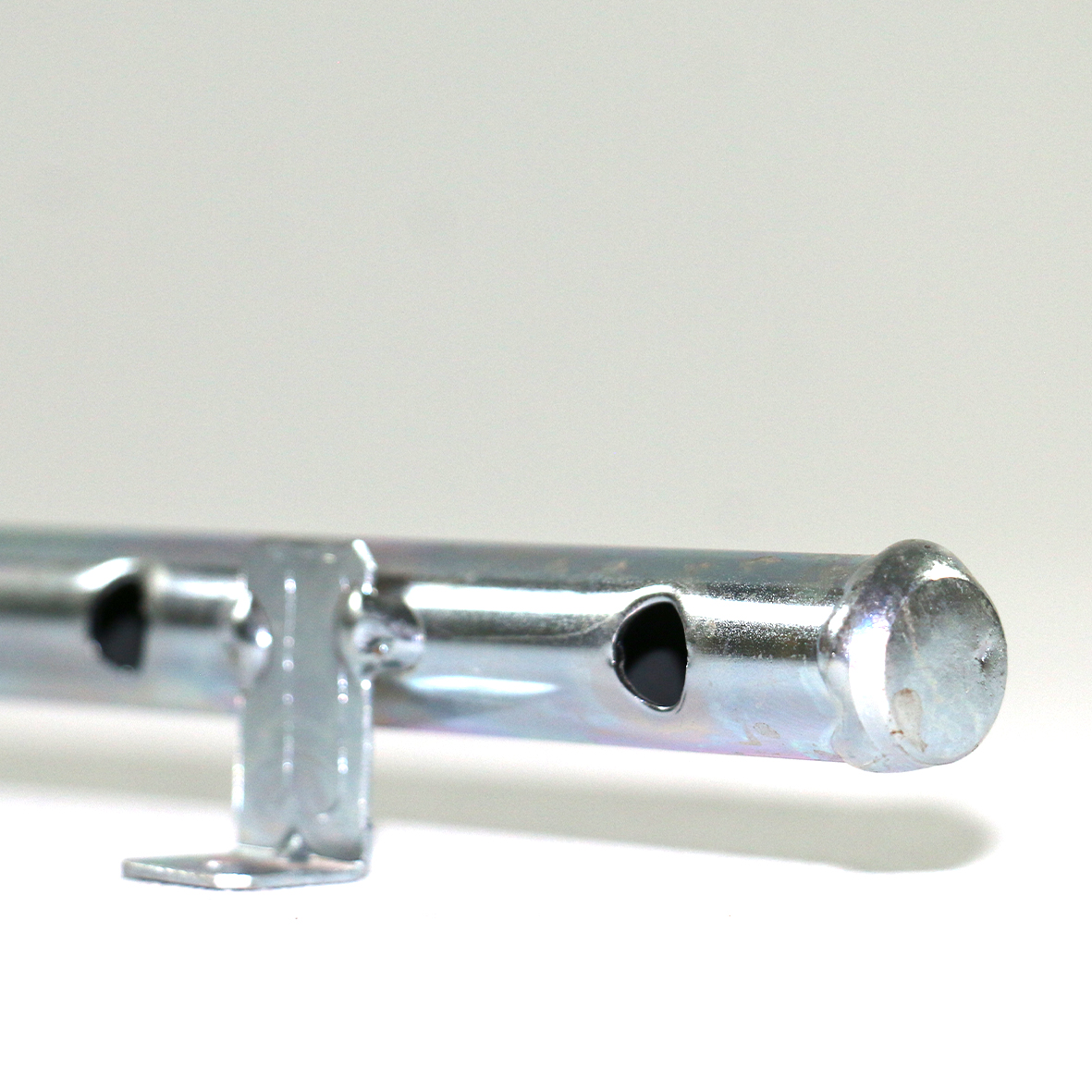

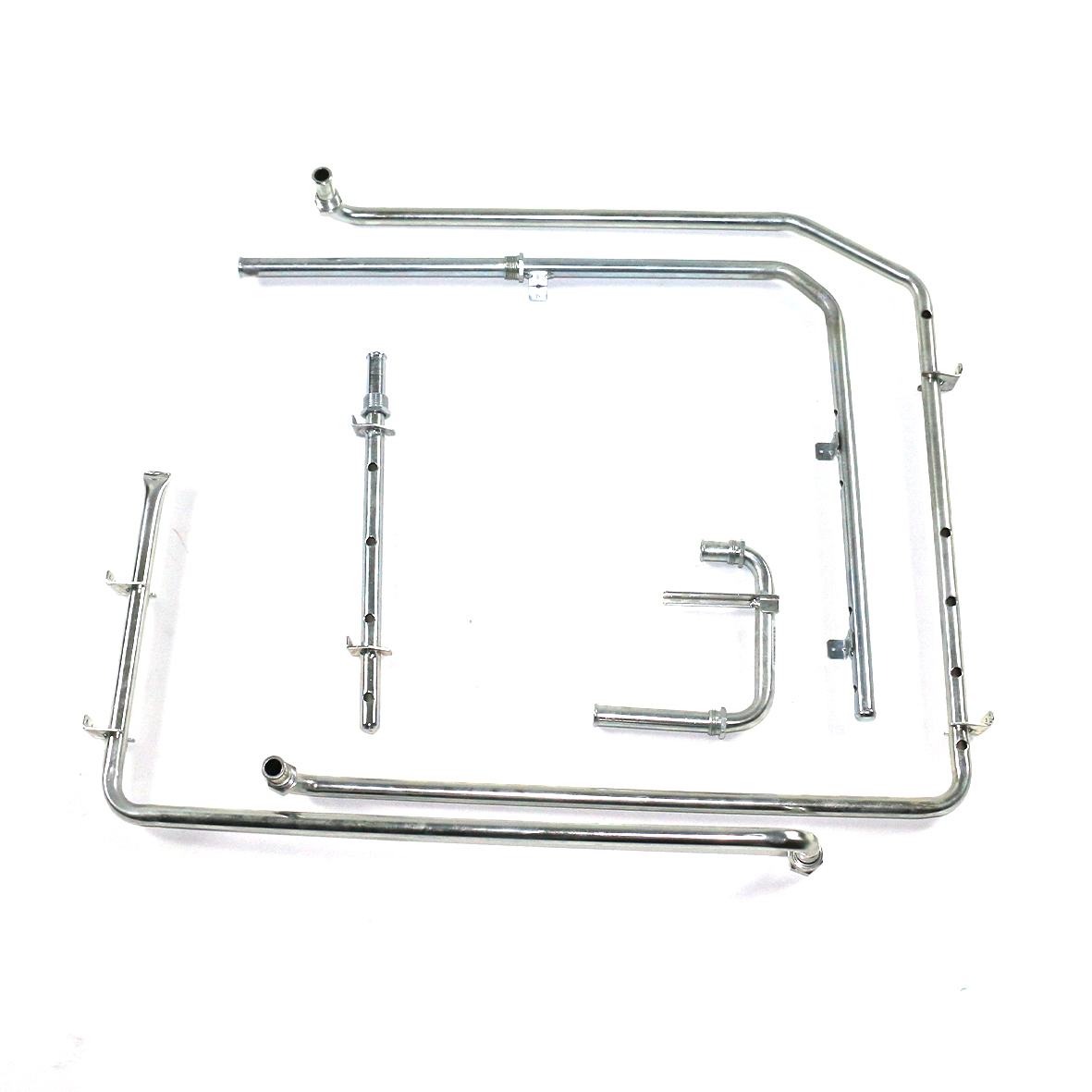

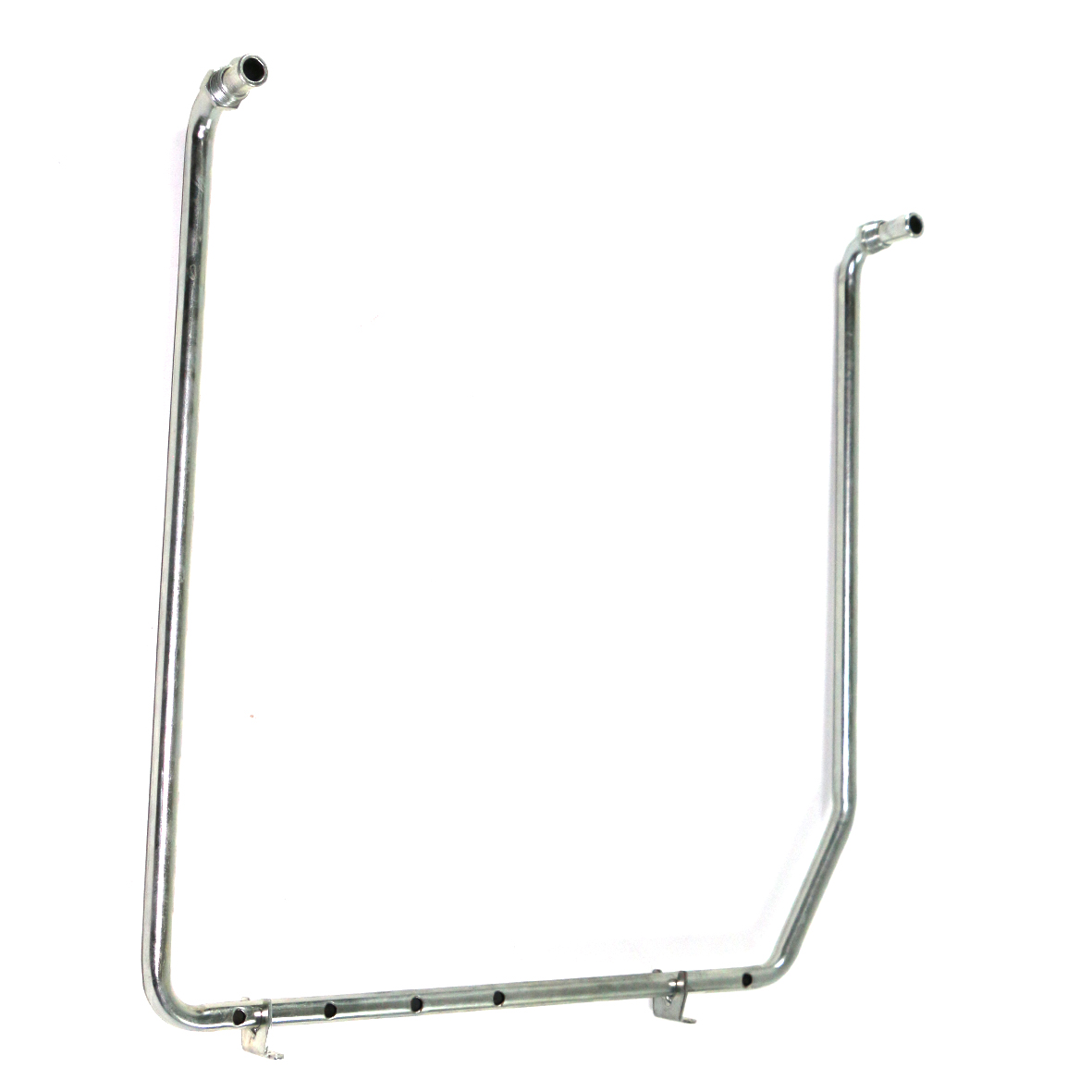

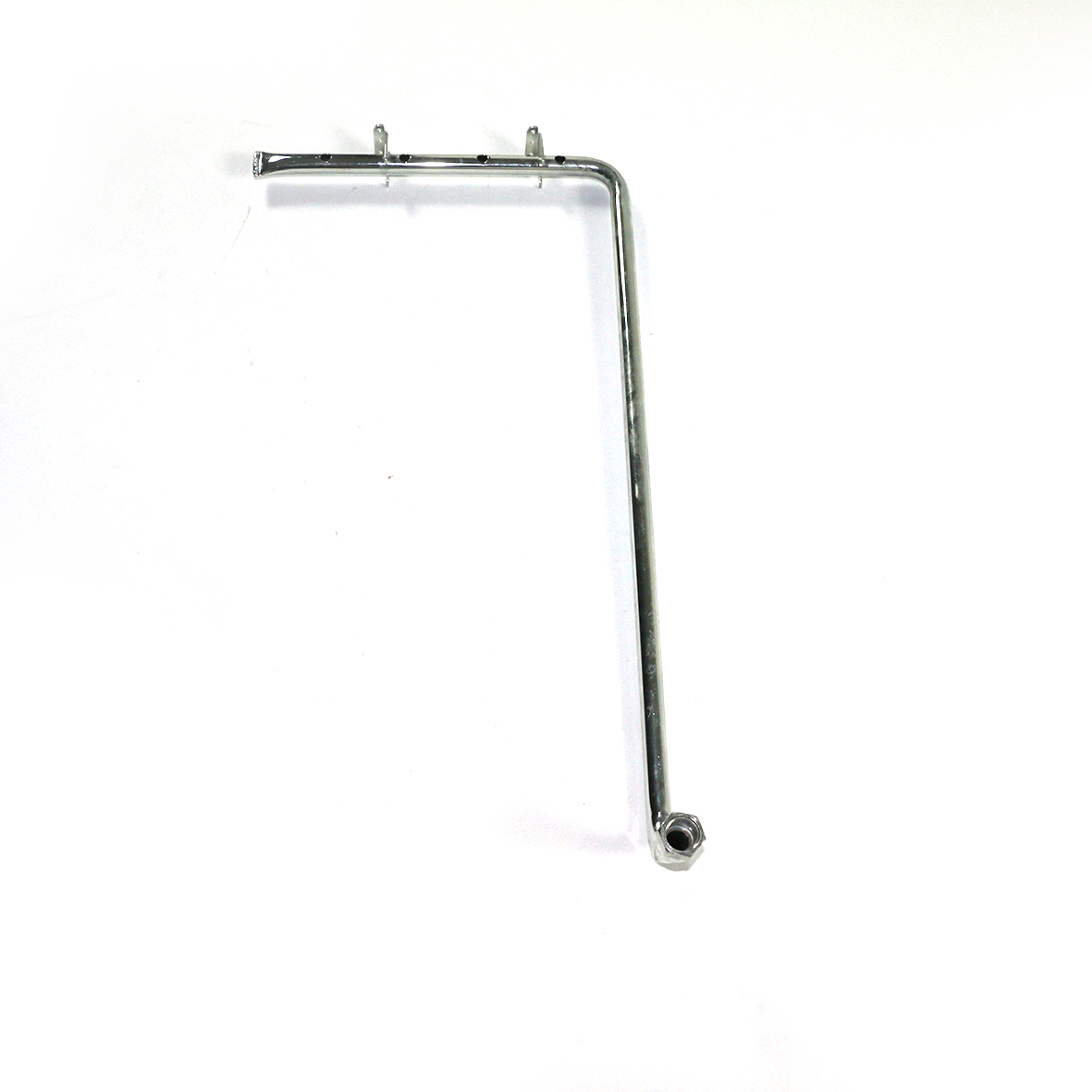

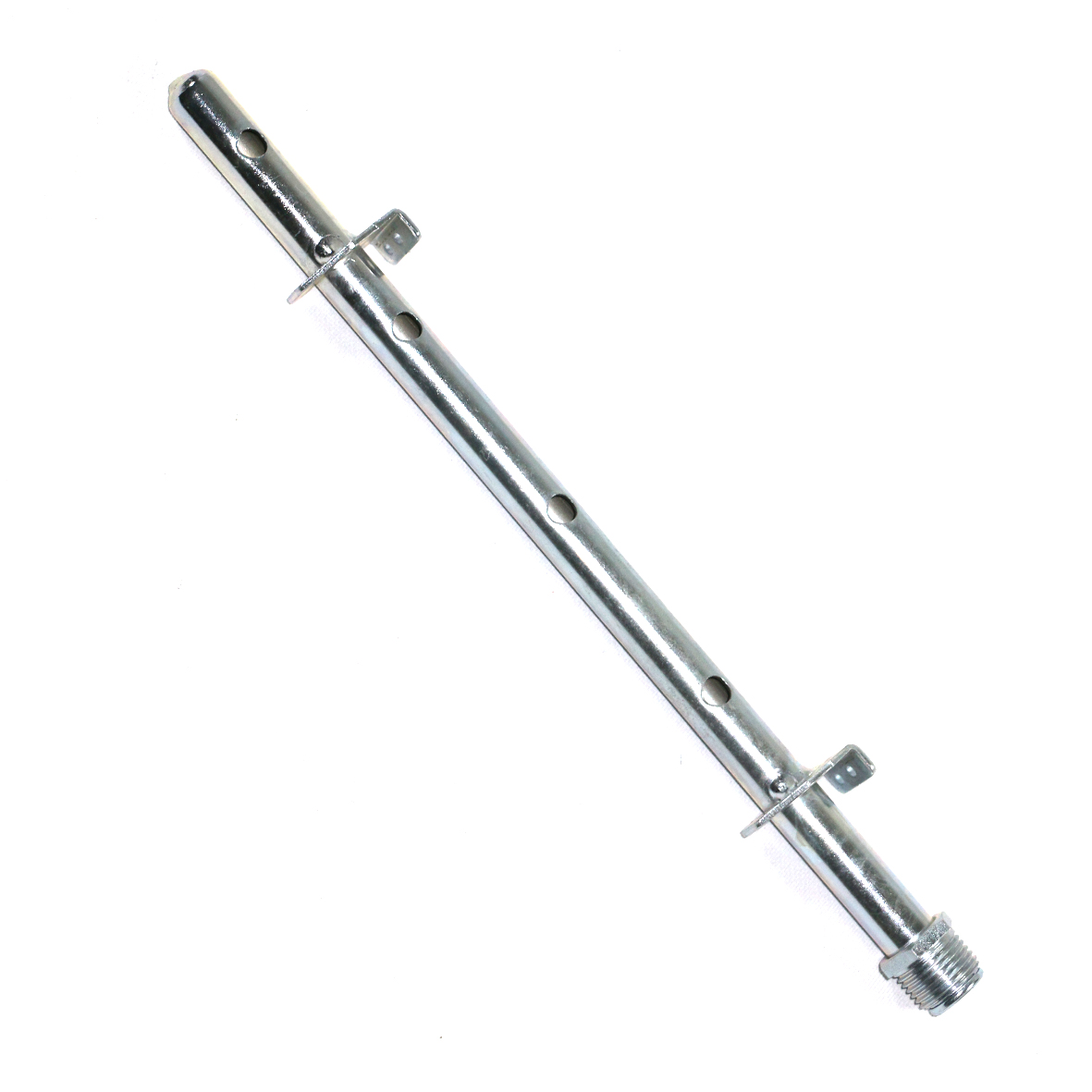

Gas Manifolds

With the push of an esteemed customer, KONVEYOR started the Gas Manifold’s production at the end of 2009 and reached to one million pieces of production capacity soon. The gas manifold in an oven is a crucial component that distributes gas to the burners or heating elements. It’s essentially a network of pipes and valves that ensures a controlled and safe flow of gas to each burner.

The 16×1 mm size steel tube is used in the production. All mechanical production steps including robot welding of brackets are carried out internally except the zinc plating operation made at a nearby supplier.

Aluminized tubes can be an alternative for gas manifolds as well. The “aluminized” part refers to the coating of aluminum on the steel pipes.
Benefits :
• Aluminum forms a protective oxide layer that shields the underlying steel from corrosion, especially in environments with high humidity or exposure to certain chemicals.
• This extends the lifespan of the manifold and reduces the risk of leaks or failures.
• Aluminized steel is generally more affordable than stainless steel, making it a cost-effective choice for manufacturers and consumers.

• Tube Material: DX53D+AS
• Coating Type: Aluminium Silicium
