KONVEYOR also manufactures and supplies the MOUNTING KITS for all size air conditioners with accessories and can ship in custom made boxes. Following the trend shifting from copper to aluminum, KONVEYOR has converted the traditional copper connecting lines to aluminum successfully.

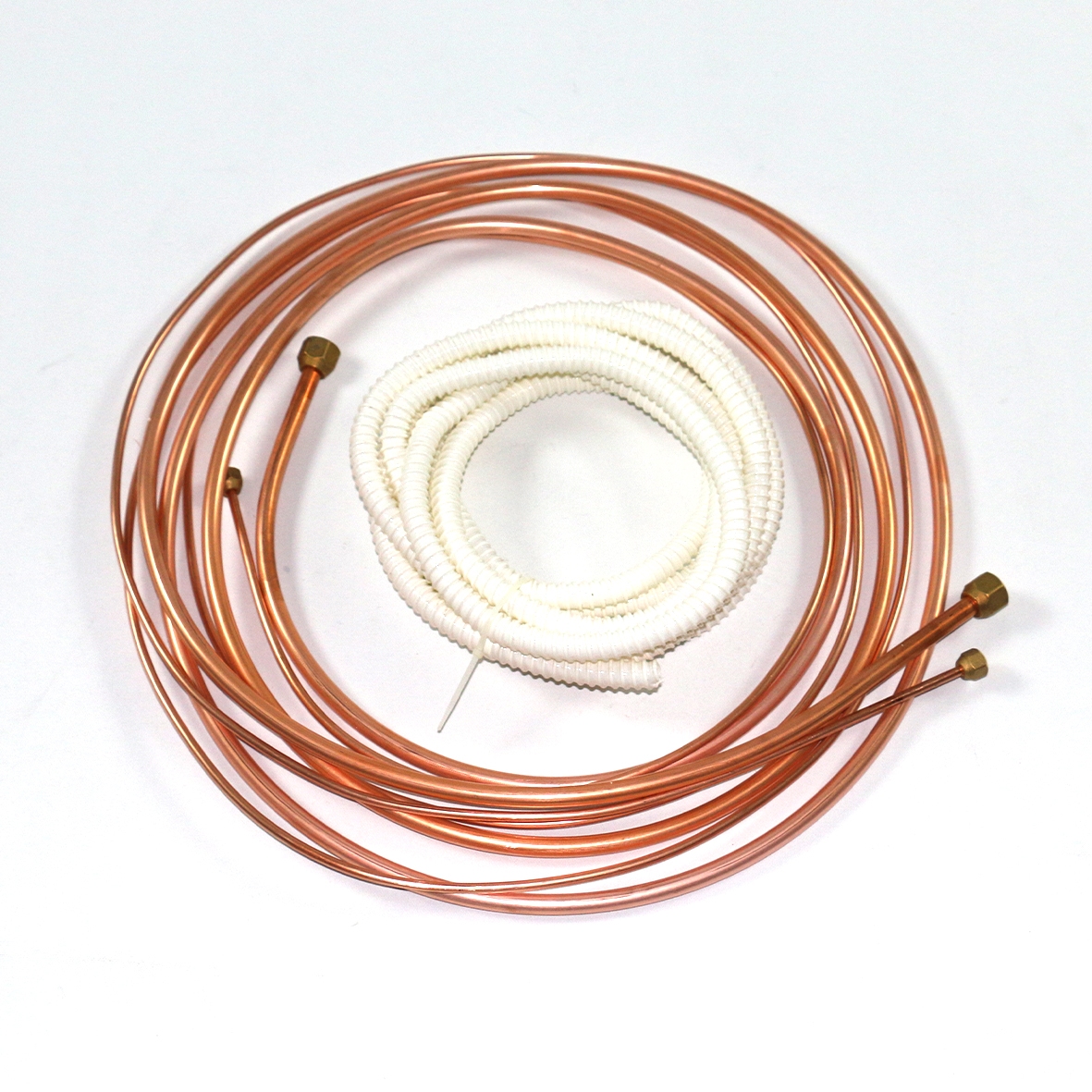

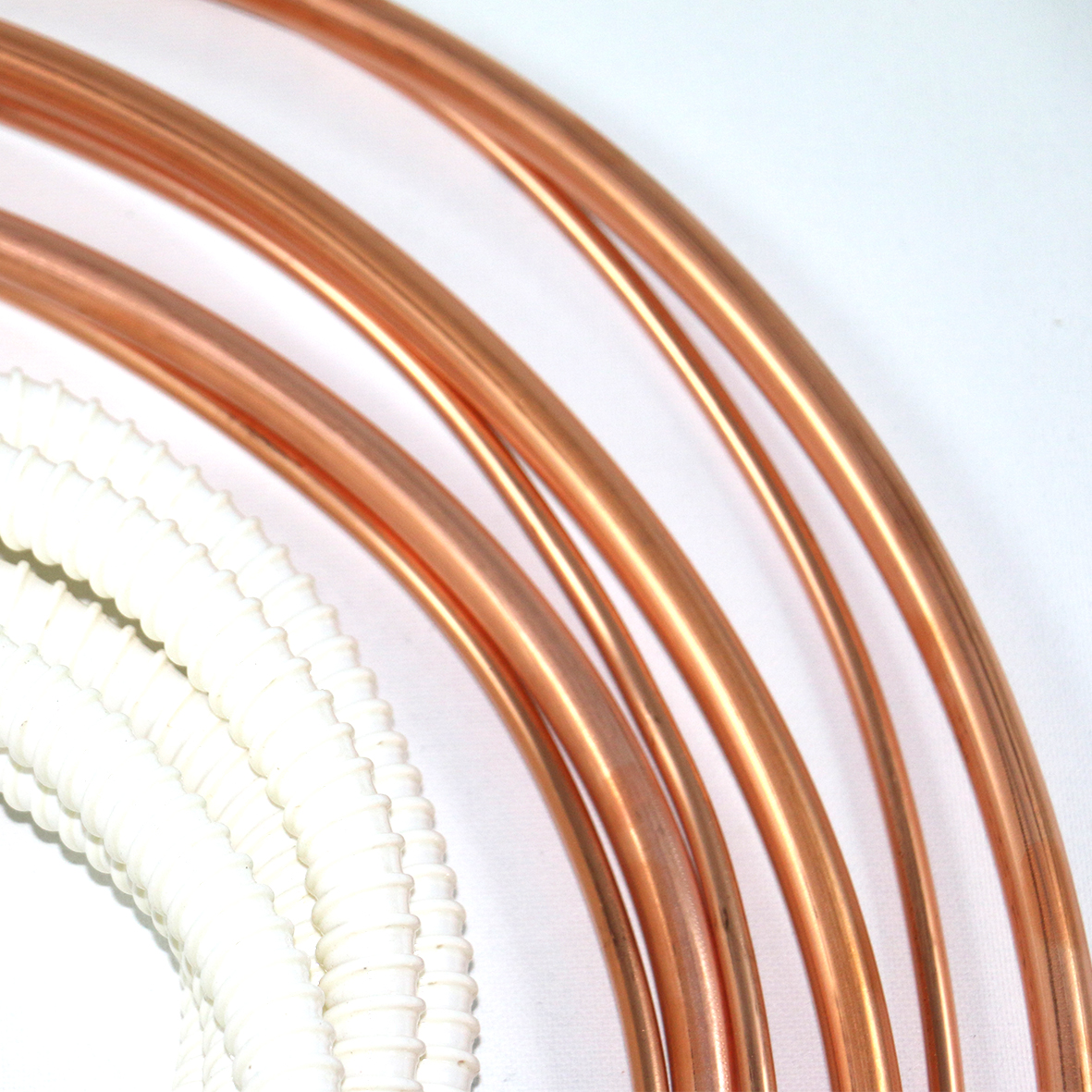

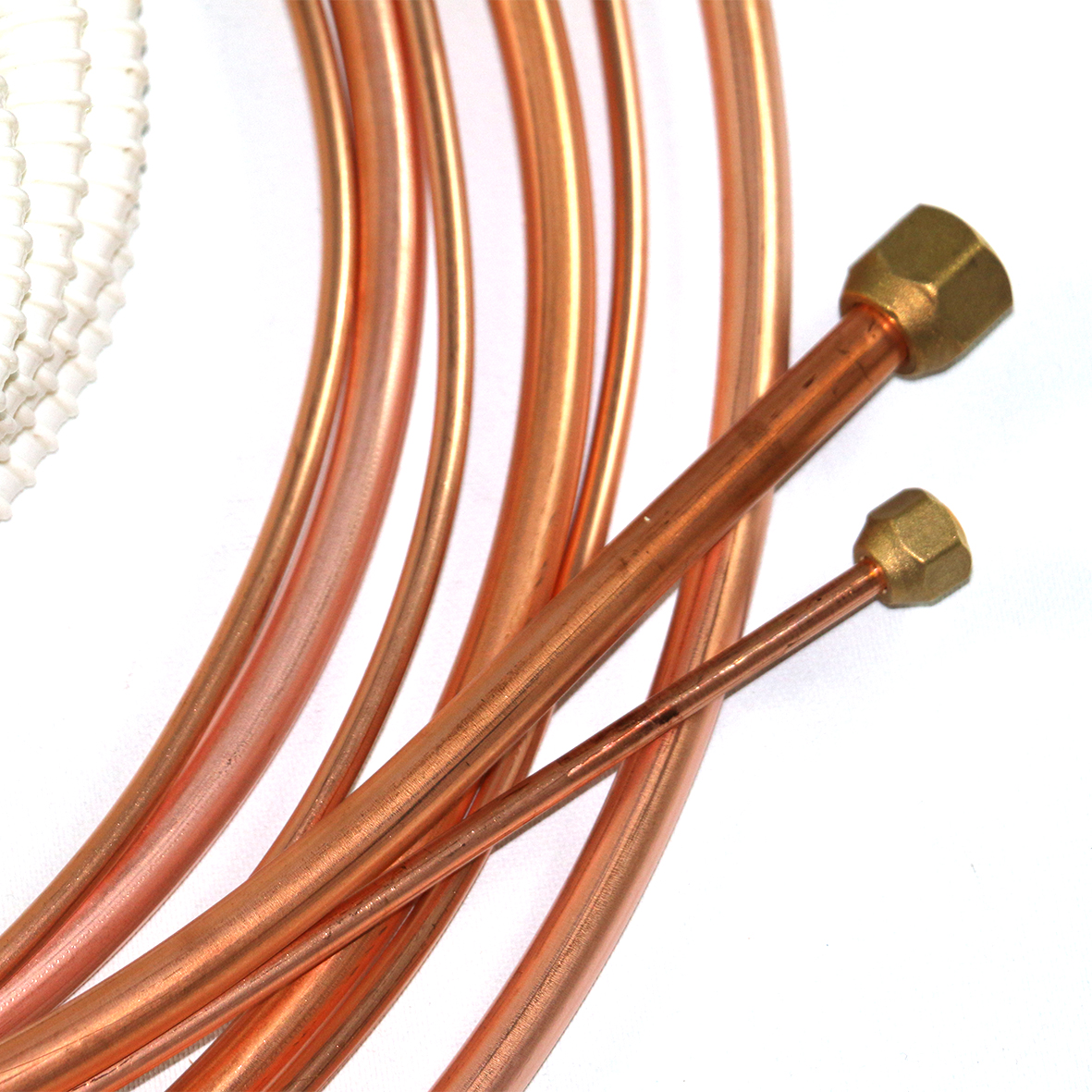

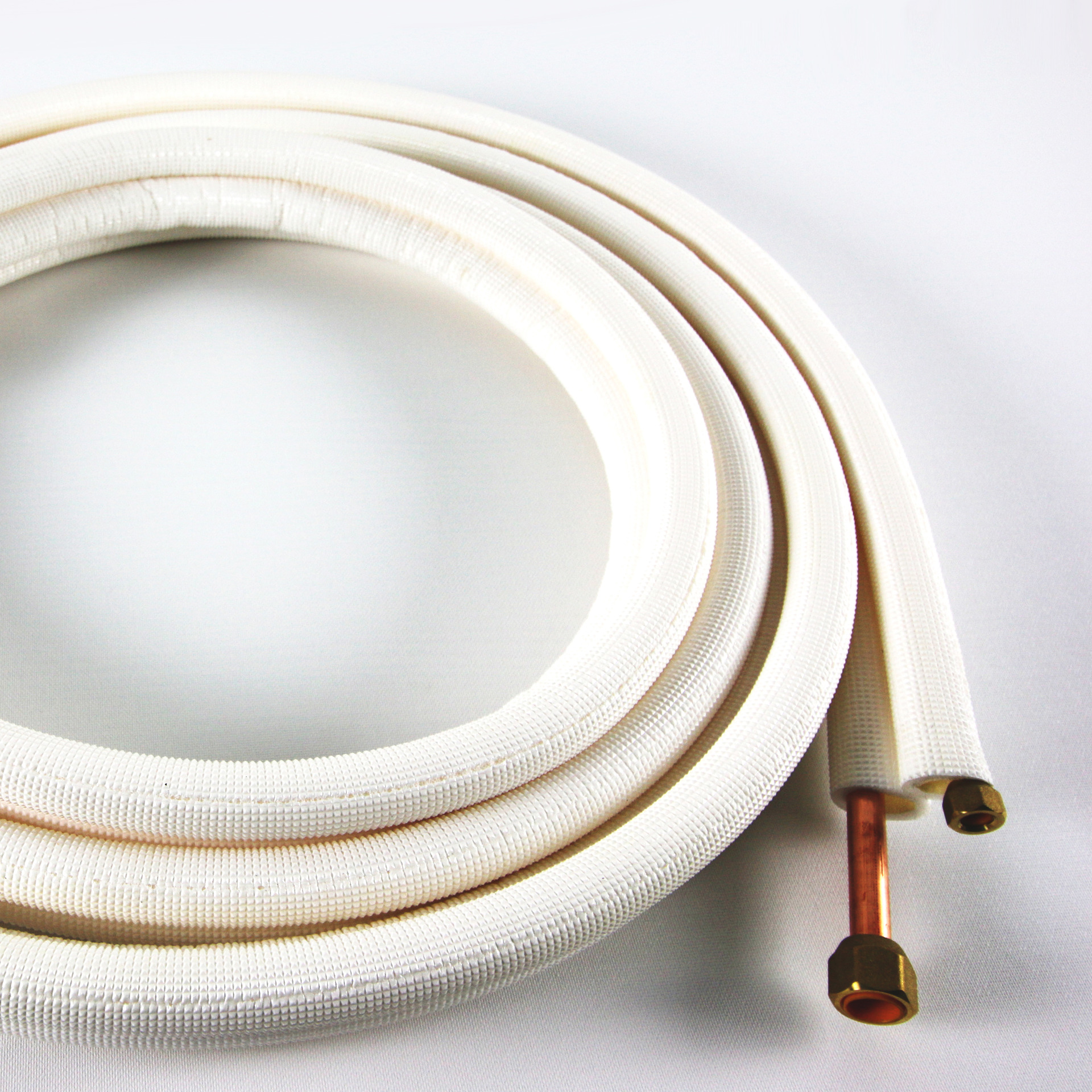

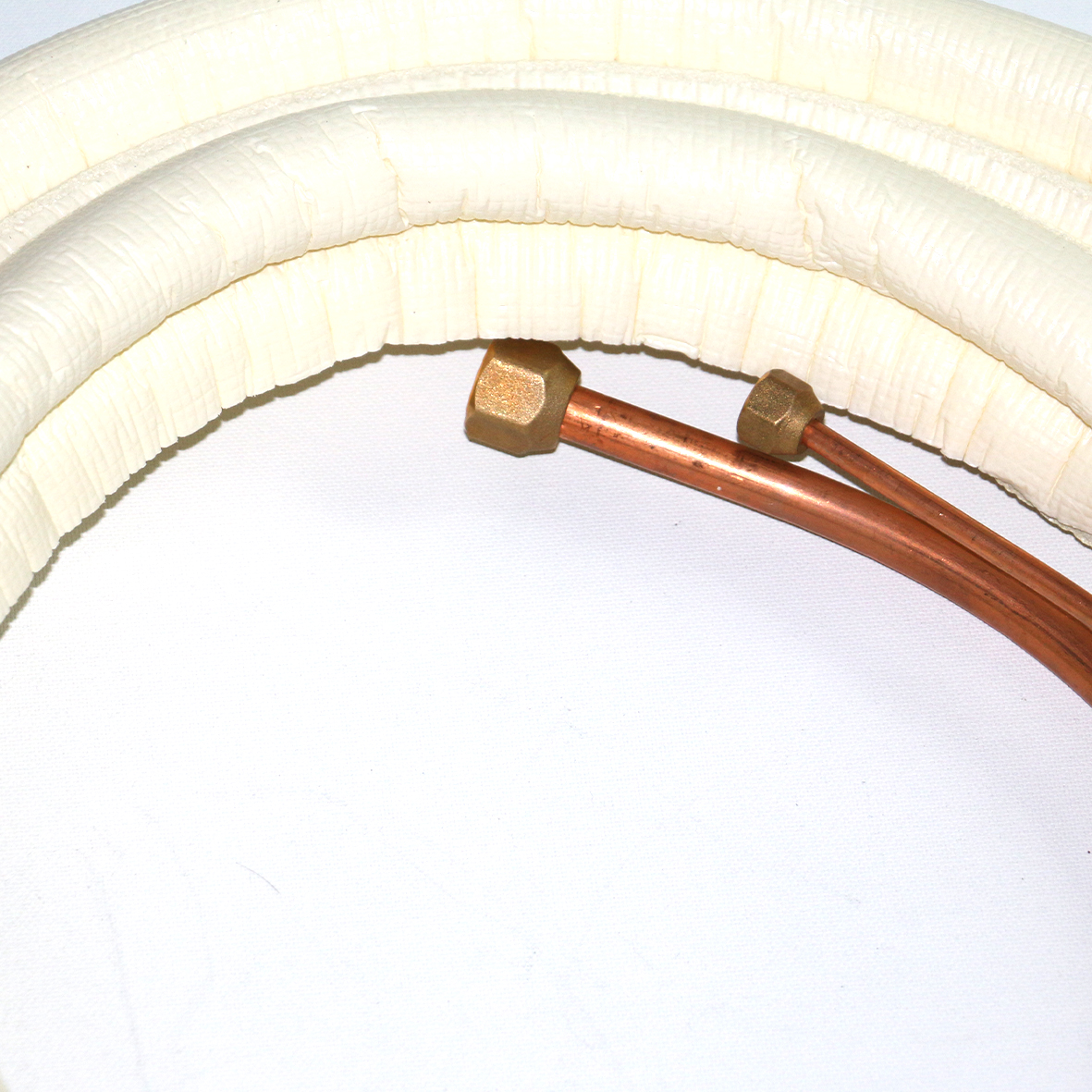

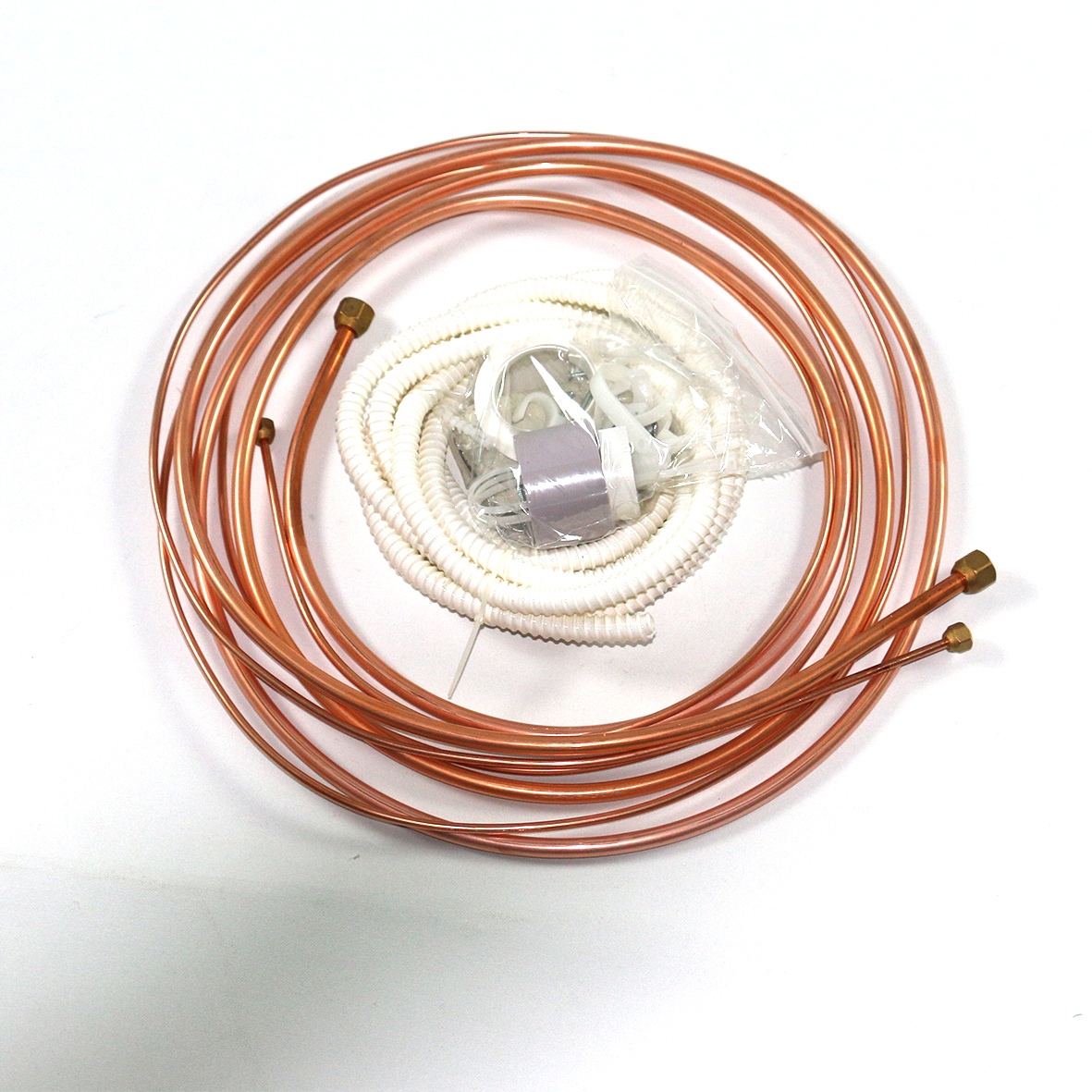

Assembly kits are the equipment required for the circulation of the refrigerant in the air conditioning system and connecting the indoor and outdoor units used in split air conditioners. This equipment consists of two tubes, one for the high-pressure line and the other for the low-pressure line, joined side by side and insulated. Assembly kits have brass fittings for easy mounting to the indoor and outdoor units. Konveyor can also produce the assembly kits in the lengths requested by customers. In addition to the traditionally produced copper assembly kits, Konveyor also manufactures assembly kits made of aluminum tubes. These aluminum assembly kits are of two types.

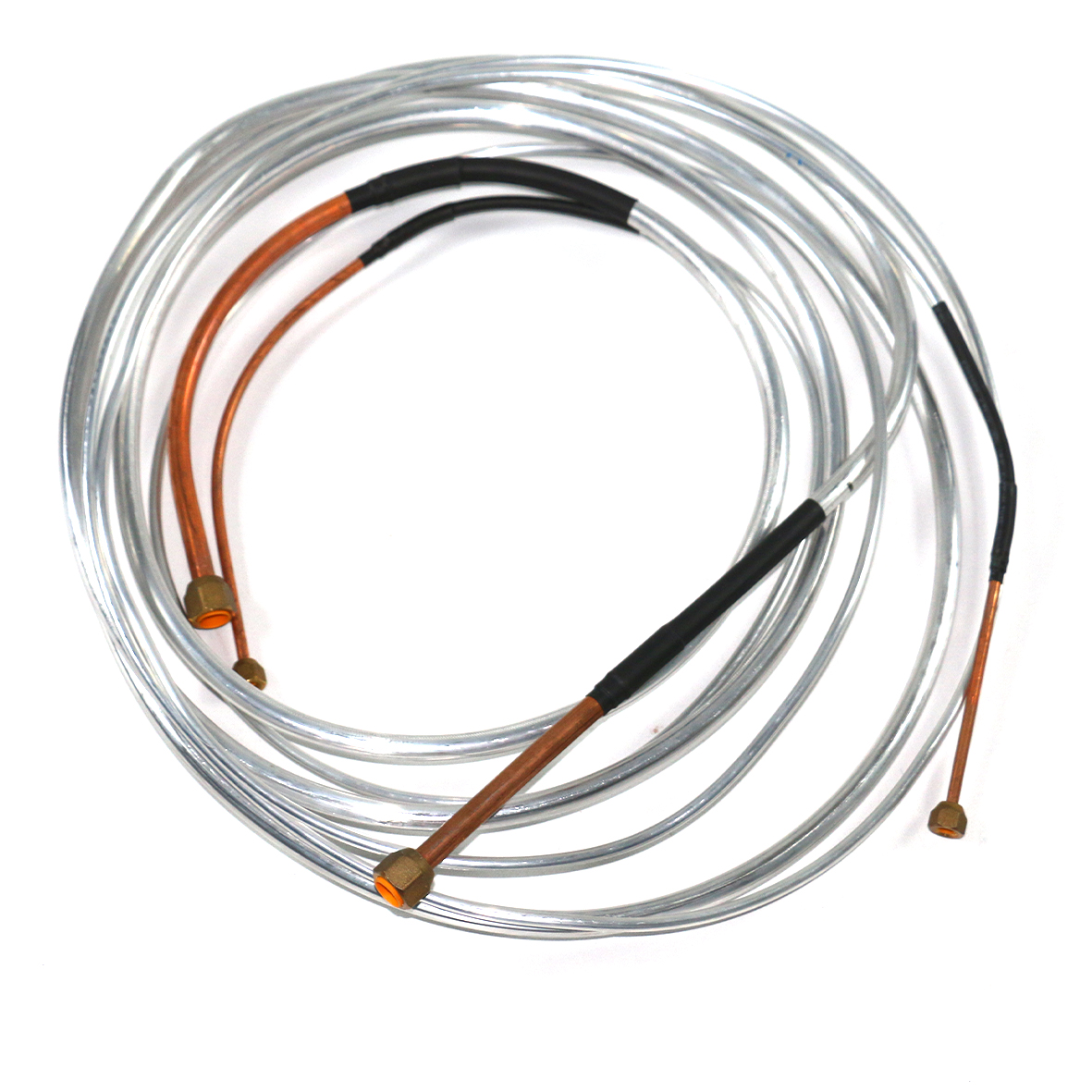

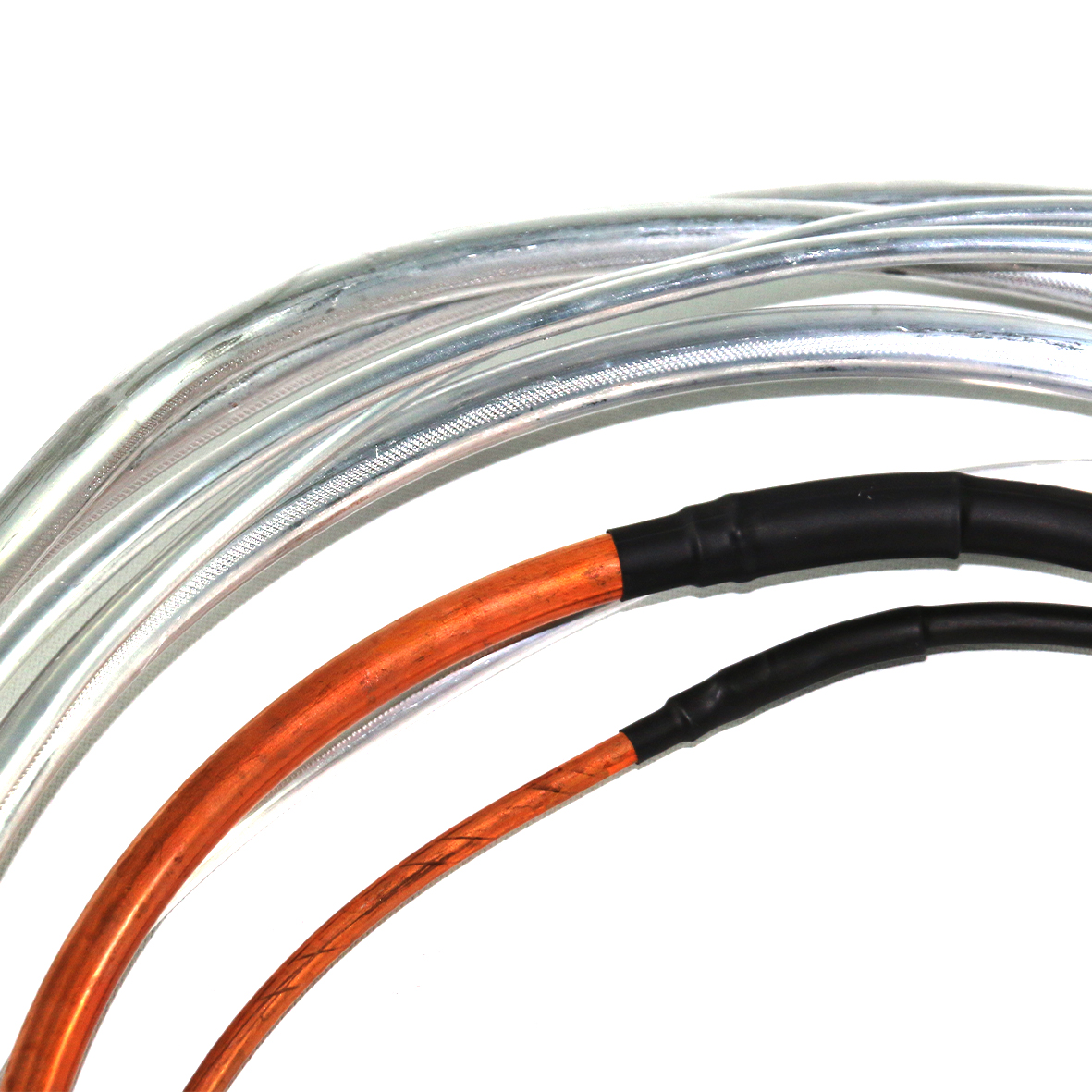

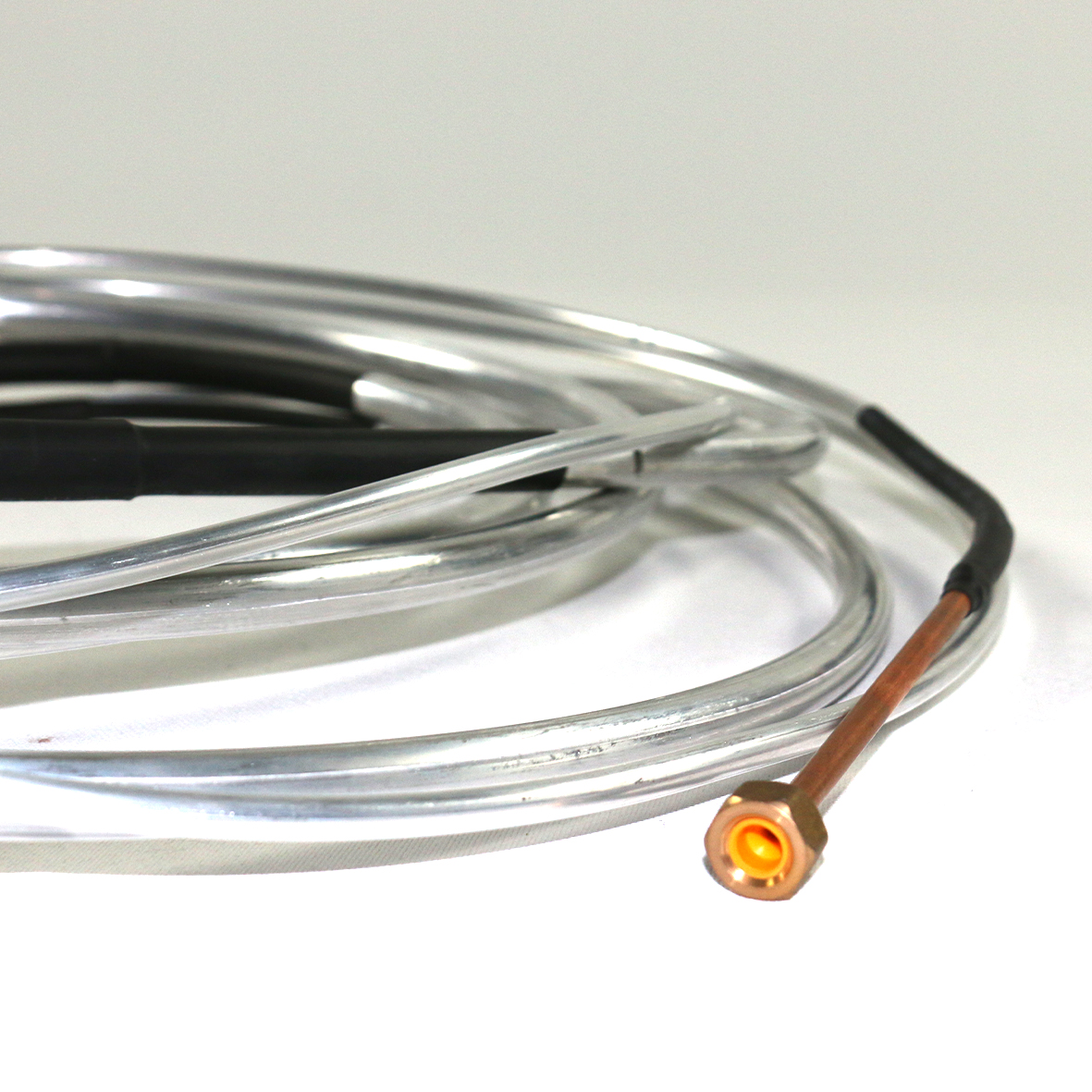

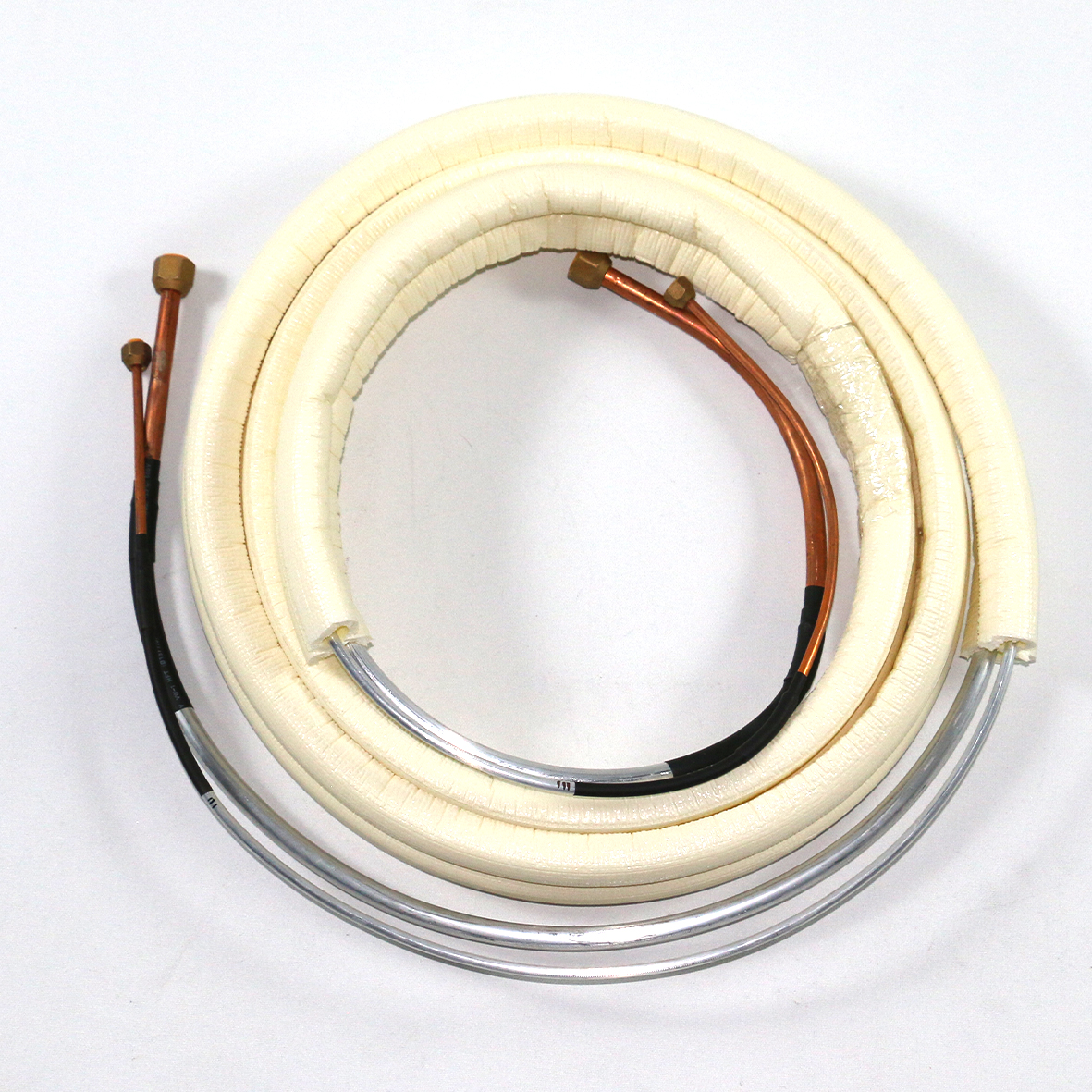

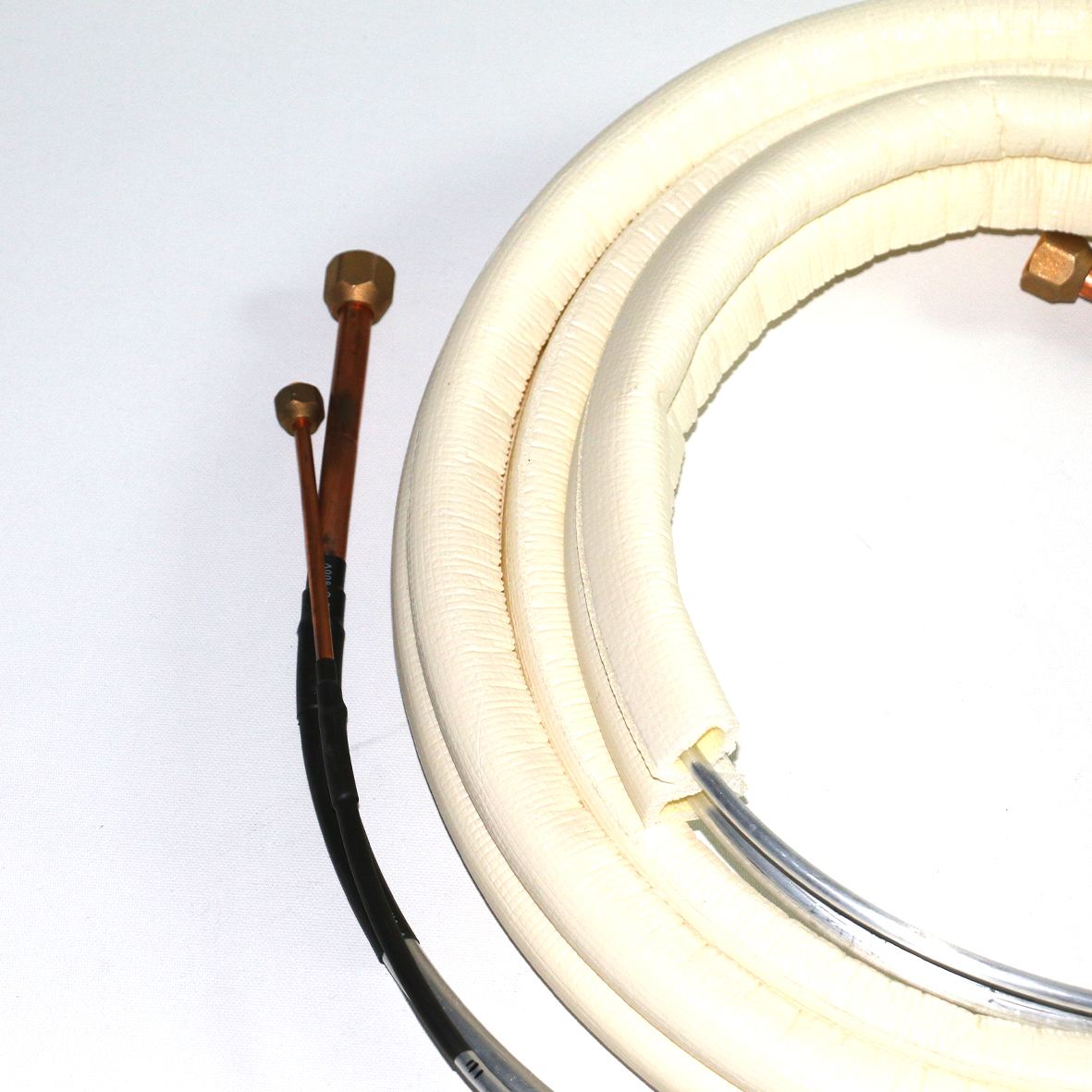

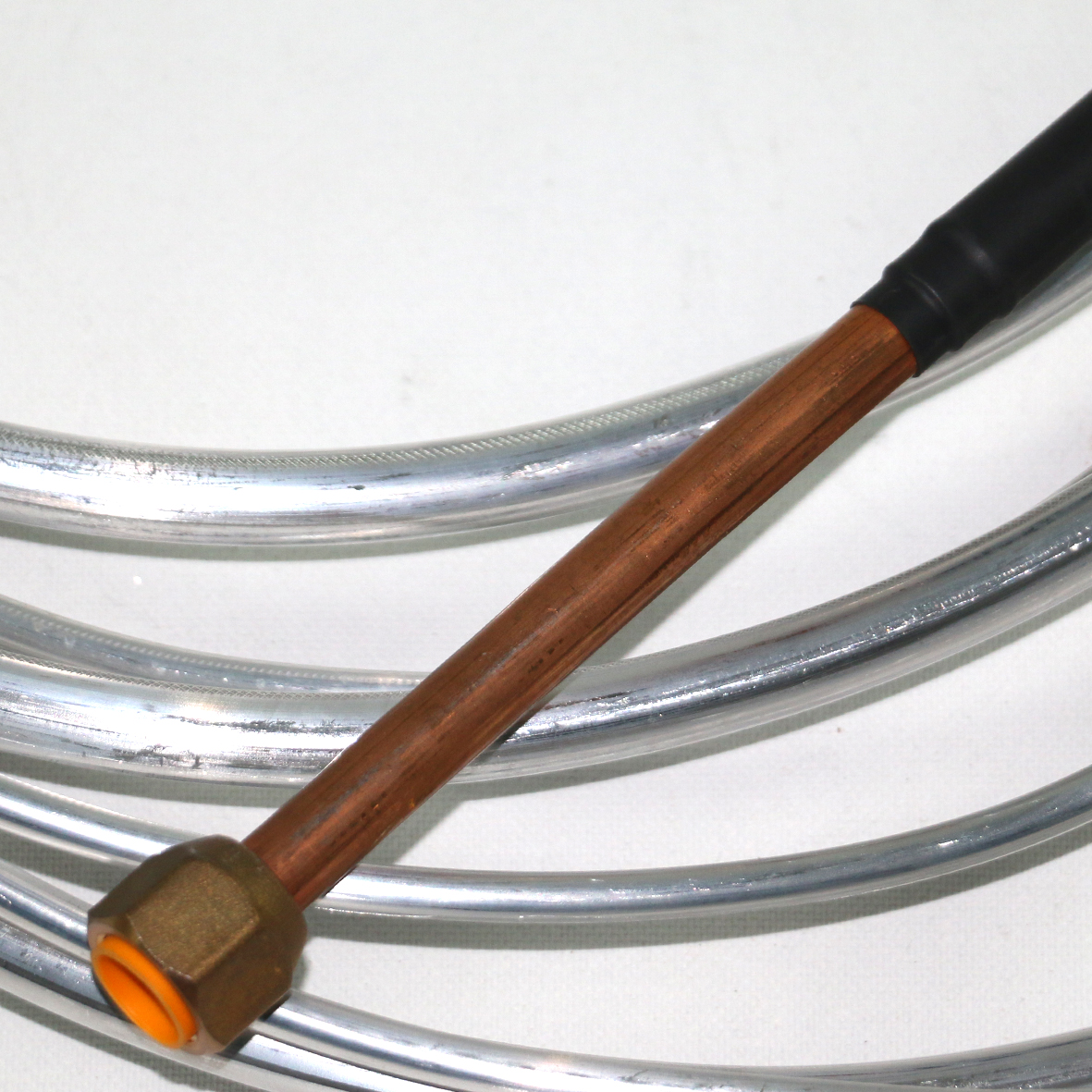

• Aluminum tube with copper tube end
• Full aluminum tube line

Benefits of aluminum mounting kits

• Cost advantage
• Easy mounting
• High corrosion resistant
• Production in desired length

Material

• Aluminum 3000 series and 1000 series

Dimensions of Assembly kits:

• ¼” (6,35 x 0,8 mm )
• 3/8” (9,52 x 1 mm )
• ½” (12,7 x 1,2 mm)
• 5/8” (15,88 x 1,2 mm)
